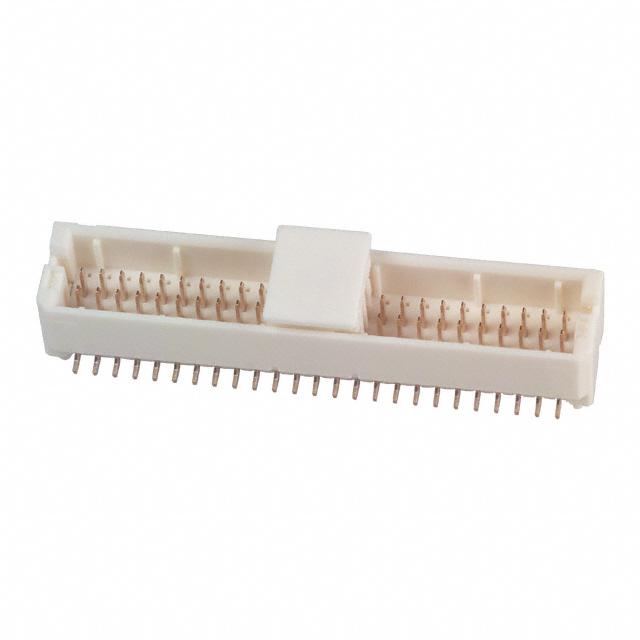

Hirose Electric Co Ltd DF20F-50DP-1V(56)

DF20F-50DP-1V-56- Hirose Electric Co Ltd DF20F-50DP-1V(56)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-35°C ~ 85°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
50
Contact Finish - Post:
Gold
edacadModel:
DF20F-50DP-1V(56) Models
Overall Contact Length:
-
Insulation Height:
0.181" (4.60mm)
Insulation Color:
Natural
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1026438
Contact Shape:
Square
Mated Stacking Heights:
5.8mm
Voltage Rating:
100V
Row Spacing - Mating:
0.039" (1.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
DF20
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
DF20F
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF20F-50DP-1V(56). It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -35°c ~ 85°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 50. It has possible gold contact post finishing. 0.181" (4.60mm) of insulation height. In addition, natural is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 5.8mm. Moreover, the product has a nominal 100v voltage rating. It carries 0.039" (1.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount configuration. The product df20, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to df20f, a base product number of the product. The product is designated with the ear99 code number.
