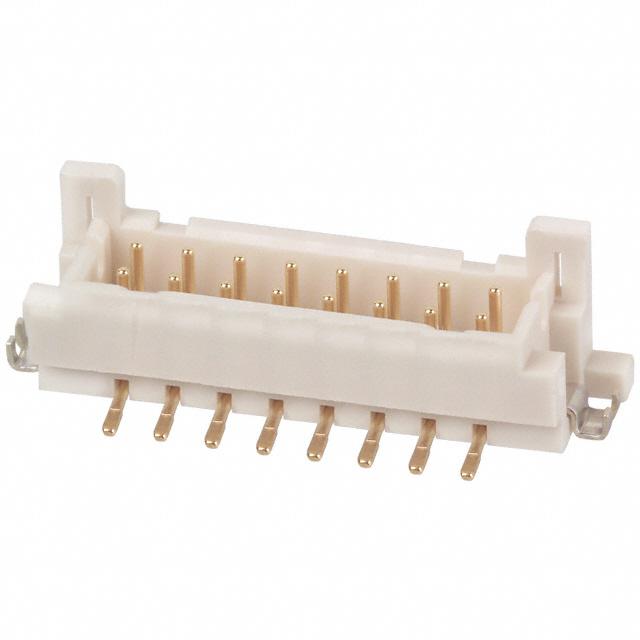

Hirose Electric Co Ltd DF11G-16DP-2V(50)

DF11G-16DP-2V-50- Hirose Electric Co Ltd DF11G-16DP-2V(50)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-30°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
16
Contact Finish - Post:
-
edacadModel:
DF11G-16DP-2V(50) Models
Overall Contact Length:
-
title:
DF11G-16DP-2V(50)
Insulation Height:
0.283" (7.19mm)
Insulation Color:
Beige
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/524351
Contact Shape:
Circular
Mated Stacking Heights:
8.2mm, 8.45mm, 9.55mm
Voltage Rating:
250V
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Surface Mount
Series:
DF11
Packaging:
Tube
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
DF11G
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF11G-16DP-2V(50). It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -30°c ~ 85°c operating temperature range. The product carries possible position value of 16. 0.283" (7.19mm) of insulation height. In addition, beige is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The mated stacking heights of a bespoke product includes 8.2mm, 8.45mm, 9.55mm. Moreover, the product has a nominal 250v voltage rating. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in surface mount configuration. The product df11, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to df11g, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
DF11 Series 04/Apr/2023(PCN Obsolescence/ EOL)
