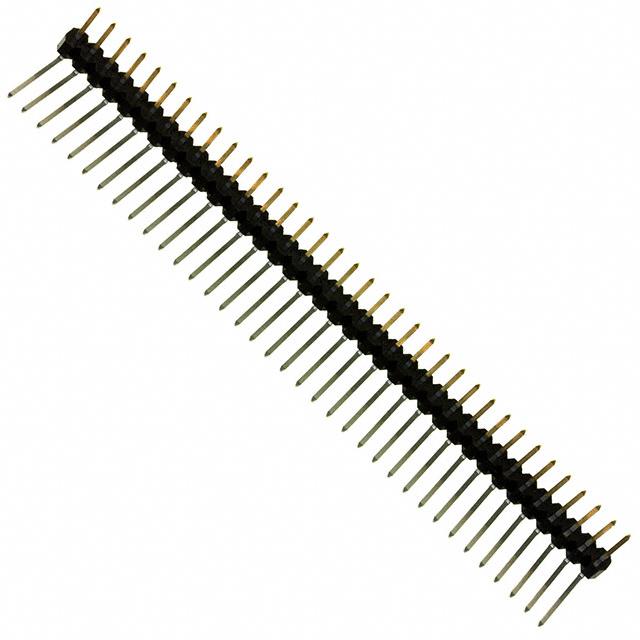

Sullins Connector Solutions PBC36SBDN

PBC36SBDN Sullins Connector Solutions
Sullins Connector Solutions

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
36
Overall Contact Length:
-
Insulation Height:
0.140" (3.56mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
4 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.400" (10.16mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
-
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
PBC36
ECCN:
EAR99
Checking for live stock

This is manufactured by Sullins Connector Solutions. The manufacturer part number is PBC36SBDN. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 36. 0.140" (3.56mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in bulk package . header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 4 weeks standard lead time. Additionally, the product's output is 3a. 0.400" (10.16mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to pbc36, a base product number of the product. The product is designated with the ear99 code number.
