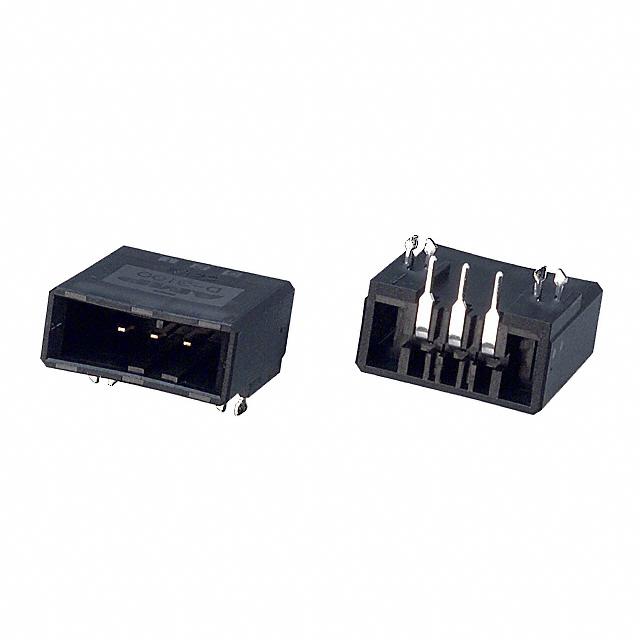

TE Connectivity AMP Connectors 1-178293-2

1-178293-2 TE Connectivity AMP Connectors
1-178293-2
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
3
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.368" (9.35mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
1-178293-2 Models
Applications:
General Purpose, Industrial
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/664194
Insulation Color:
Black
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic, Polyester, Glass Filled
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
25 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.150" (3.81mm)
Pitch - Mating:
0.150" (3.81mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Dynamic D-3100
Contact Type:
Tab
Contact Material:
Copper Alloy
Base Product Number:
178293
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 1-178293-2. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 3. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.368" (9.35mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. The product is widely employed in general purpose, industrial. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical rectangular shape. It has a robust thermoplastic, polyester, glass filled insulation material. It is shipped in tube package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 25 weeks standard lead time. 0.150" (3.81mm) is the given possible contact length (post) values. It has 0.150" (3.81mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product dynamic d-3100, is a highly preferred choice for users. It has typical contact type of tab. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 178293, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1-178293-2(Datasheets)
