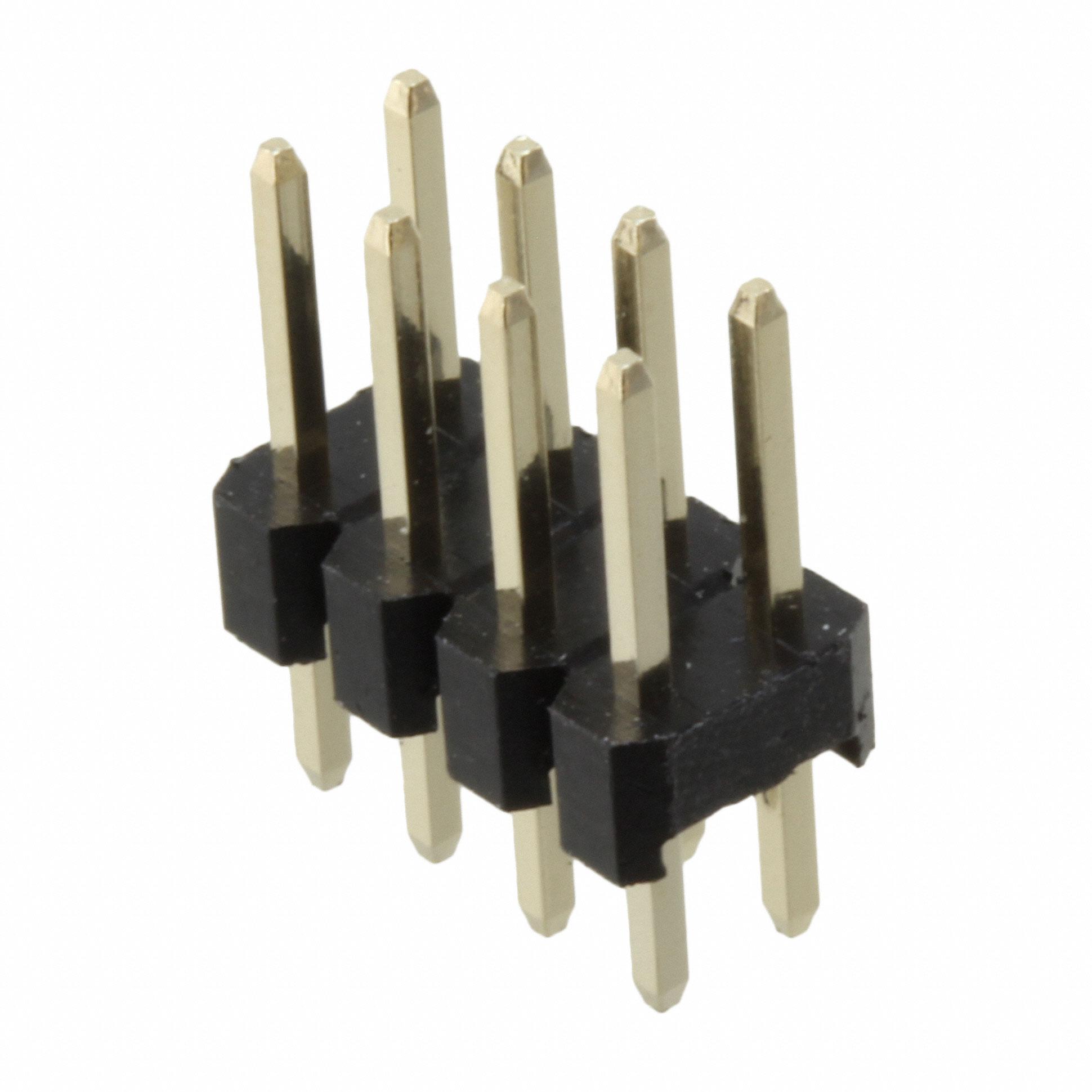

On Shore Technology Inc. PH2-230/120-081

PH2-230-120-081 On Shore Technology Inc. PH2-230/120-081
On Shore Technology Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
8
Overall Contact Length:
0.450" (11.43mm)
Insulation Height:
0.100" (2.54mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA6T), Nylon 6T
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.230" (5.84mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
8 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
PH2
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
PH2-230
ECCN:
EAR99
Checking for live stock

This is manufactured by On Shore Technology Inc.. The manufacturer part number is PH2-230/120-081. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 8. The product has a 0.450" (11.43mm) of overall contact lentgh. 0.100" (2.54mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa6t), nylon 6t insulation material. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.230" (5.84mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 8 weeks standard lead time. Additionally, the product's output is 3a. 0.120" (3.05mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product ph2, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to ph2-230, a base product number of the product. The product is designated with the ear99 code number.
