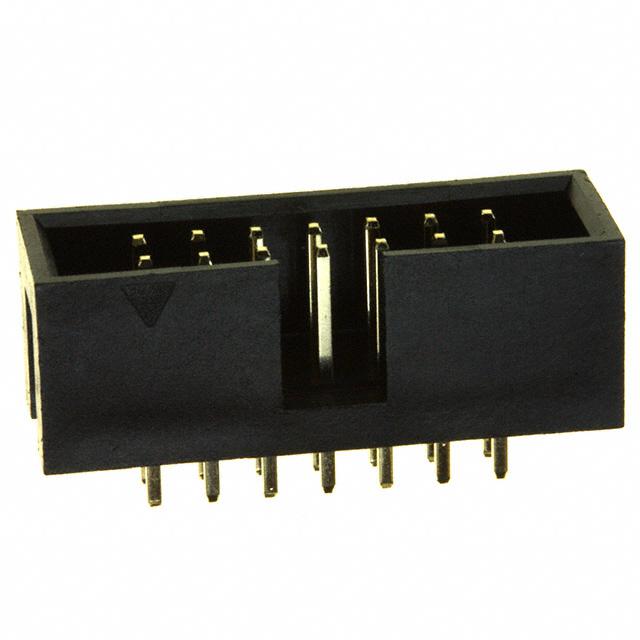

Sullins Connector Solutions SBH11-PBPC-D07-ST-BK

SBH11-PBPC-D07-ST-BK Sullins Connector Solutions
Sullins Connector Solutions

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
14
Contact Finish - Post:
Gold
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.358" (9.10mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
SBH11-PBPC-D07-ST-BK Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1990063
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
9.65mm, 11.2mm, 13.35mm, 18.35mm
Insulation Material:
Polybutylene Terephthalate (PBT)
Package:
Tray
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
SBH11
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
SBH11
ECCN:
EAR99
Checking for live stock

This is manufactured by Sullins Connector Solutions. The manufacturer part number is SBH11-PBPC-D07-ST-BK. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 14. It has possible gold contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.358" (9.10mm) of insulation height. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 9.65mm, 11.2mm, 13.35mm, 18.35mm. It has a robust polybutylene terephthalate (pbt) insulation material. It is shipped in tray package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 3a. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product sbh11, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to sbh11, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Sullins Connector Solutions RoHS Cert(Environmental Information)
pdf icon
Sullins Connector Solutions REACH(Environmental Information)
pdf icon
SBH11 Series Datasheet(Datasheets)
pdf icon
SBH11-xBPC-Dxx-ST-xx Drawing(Datasheets)
