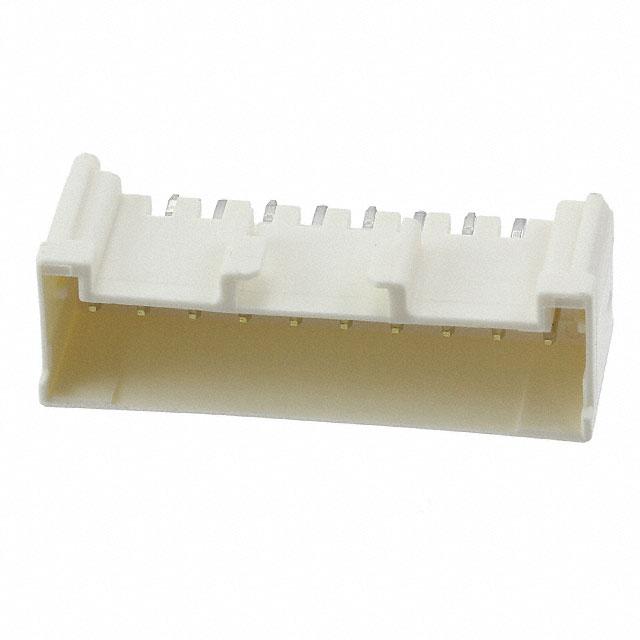

TE Connectivity AMP Connectors 917788-1

917788-1 TE Connectivity AMP Connectors
917788-1
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-30°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
10
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.410" (10.41mm)
Insulation Height:
0.386" (9.80mm)
Voltage Rating:
50V
REACH Status:
Vendor Undefined
edacadModel:
917788-1 Models
Applications:
General Purpose
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4730233
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
13.7mm
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.185" (4.70mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Kinked Pin, Solder
standardLeadTime:
22 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Signal Double Lock
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
917788
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 917788-1. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -30°c ~ 105°c operating temperature range. The product carries possible position value of 10. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.410" (10.41mm) of overall contact lentgh. 0.386" (9.80mm) of insulation height. Moreover, the product has a nominal 50v voltage rating. In addition, it is vendor undefined. The product is widely employed in general purpose. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 13.7mm. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.185" (4.70mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 22 weeks standard lead time. Additionally, the product's output is 3a. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product signal double lock, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 917788, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Production Print Scheme 22/Aug/2016(PCN Design/Specification)
pdf icon
917788-1(Datasheets)
pdf icon
Multiple Devices Packaging Retraction 19/Mar/2018(PCN Packaging)
pdf icon
Multiple Devices Packaging 22/Feb/2018(PCN Packaging)
