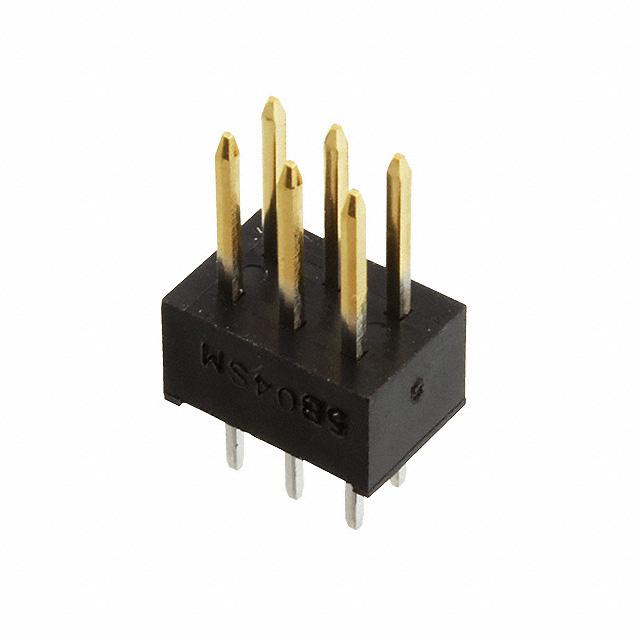

Hirose Electric Co Ltd HIF3H-6PB-2.54DSA(71)

HIF3H-6PB-2-54DSA-71- Hirose Electric Co Ltd HIF3H-6PB-2.54DSA(71)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 85°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
6
Contact Finish - Post:
Tin
edacadModel:
HIF3H-6PB-2.54DSA(71) Models
Overall Contact Length:
0.591" (15.00mm)
title:
HIF3H-6PB-2.54DSA(71)
Insulation Height:
0.177" (4.50mm)
Insulation Color:
Black
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3978242
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
300V
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.276" (7.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
HIF3H
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
HIF3H
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is HIF3H-6PB-2.54DSA(71). It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 85°c operating temperature range. Additionally, it features 78.7µin (2.00µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. The product has a 0.591" (15.00mm) of overall contact lentgh. 0.177" (4.50mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 300v voltage rating. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.276" (7.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product hif3h, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt) insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to hif3h, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult devs Material manufacturer chg 23/AUG/2018(PCN Design/Specification)
