Shrouded/Unshrouded:
Shrouded
Current Rating:
5A
Mounting Type:
Through Hole
Series:
3000
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Board to Board, Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
2.54mm
Number of Contacts:
14
Type:
Board to Board, Wire to Board
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
14
Overall Contact Length:
0.695" (17.65mm)

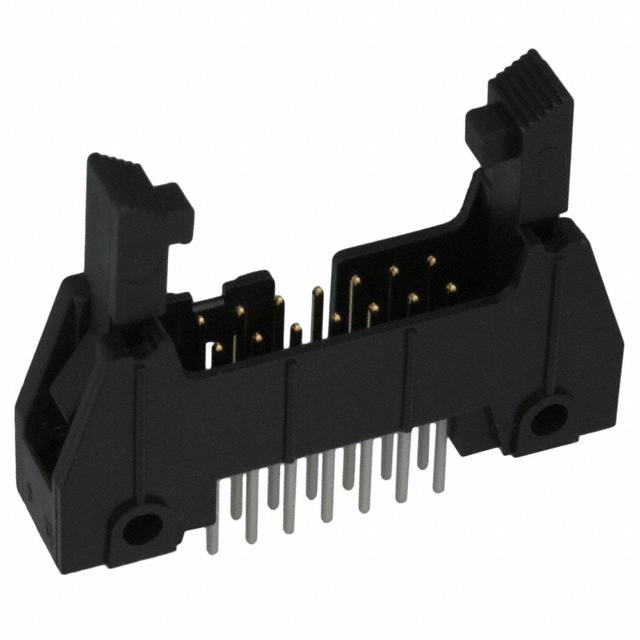

title:
N3314-6303RB
Insulation Height:
0.680" (17.27mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Lock/Eject Hooks, Long
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
1.75A
Contact Length - Post:
0.155" (3.94mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Mounting Flange
Mounting Type:
Through Hole
Series:
3000
Packaging:
Bulk
Insulation Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
N3314
ECCN:
EAR99
