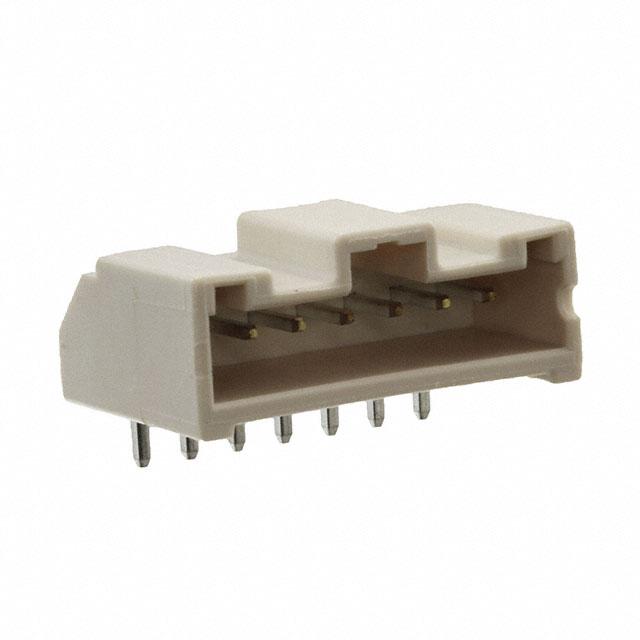

Hirose Electric Co Ltd DF1E-7P-2.5DS(35)

DF1E-7P-2-5DS-35- Hirose Electric Co Ltd DF1E-7P-2.5DS(35)
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-35°C ~ 85°C
Number of Positions:
7
Contact Finish - Post:
Tin
edacadModel:
DF1E-7P-2.5DS(35) Models
Overall Contact Length:
-
Insulation Height:
0.315" (8.00mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5416391
Contact Shape:
Square
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.177" (4.50mm)
Number of Positions Loaded:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Latch Holder
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
0.114" (2.90mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
DF1E
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
Contact Material:
Brass
Base Product Number:
DF1E
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF1E-7P-2.5DS(35). It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -35°c ~ 85°c operating temperature range. The product carries possible position value of 7. It has possible tin contact post finishing. 0.315" (8.00mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. header Connector type offer robust functionality. It is 0.177" (4.50mm) contact mated. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. 0.114" (2.90mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product df1e, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to df1e, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev Supplier Add 2/May/2023(PCN Assembly/Origin)
pdf icon
Mult Devs EOL/Obs 30/Oct/2023(PCN Obsolescence/ EOL)
pdf icon
End of Life 10/JAN/2024(PCN Obsolescence/ EOL)
