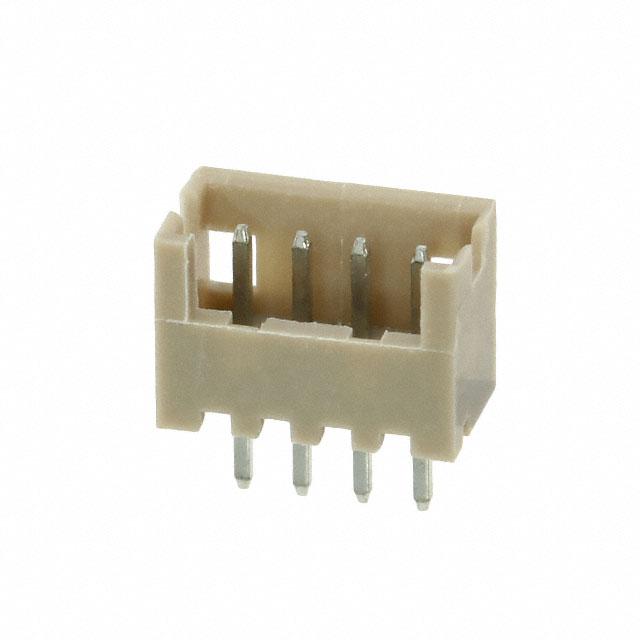

Harwin Inc. M30-6100446

M30-6100446 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-25°C ~ 85°C
Contact Finish Thickness - Post:
-
Number of Positions:
4
Overall Contact Length:
-
Insulation Height:
0.169" (4.30mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
5.4mm
Voltage Rating:
100V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
80.0µin (2.03µm)
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
1A per Contact
Contact Length - Post:
0.091" (2.30mm)
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
M30
Packaging:
Tube
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
M30-610
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M30-6100446. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -25°c ~ 85°c operating temperature range. The product carries possible position value of 4. 0.169" (4.30mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 5.4mm. Moreover, the product has a nominal 100v voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 80.0µin (2.03µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 1a per contact. 0.091" (2.30mm) is the given possible contact length (post) values. It has 0.049" (1.25mm) of pitch-mating value. The product is available in through hole configuration. The product m30, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to m30-610, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
M30-6100246(Product Brief)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
M30 Series Spec(Datasheets)
pdf icon
M30-1050046(Other Related Documents)
pdf icon
M30-610 Drawing(Product Drawings)
