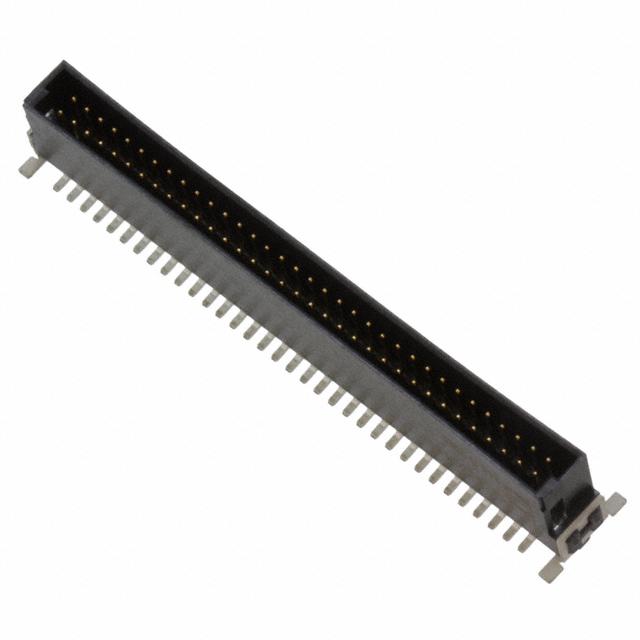

HARTING 15120682601000

15120682601000 HARTING
15120682601000
HARTING

Product Information

Shrouded/Unshrouded:
Shrouded
Mounting Type:
Surface Mount
Series:
Har-Flex
Body Orientation:
Straight
Termination Method:
Solder
Connector System:
Board to Board, Wire to Board
Number of Rows:
2
Contact Plating:
Gold
Pitch:
1.27mm
Number of Contacts:
68
Contact Material:
Copper Alloy
Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
68
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.319" (8.10mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
15120682601000 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3854906
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
har-flex®
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 15120682601000. It is supplied as shrouded. The product is available in surface mount configuration. The product har-flex, is a highly preferred choice for users. It has straight body orientation. It allows solder termination method. It allows board to board, wire to board connector system. It comes in 2 of rows. The high-quality gold is used as contact plating material. Moreover, the product is 1.27mm. The product contains 68 contacts. The product is made from sturdy copper alloy materials. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 68. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.319" (8.10mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in tape & reel (tr) package . It carries 0.050" (1.27mm) of row spacing. header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 9 weeks standard lead time. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product har-flex®, is a highly preferred choice for users. It has typical contact type of male pin. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.

pdf icon
har-flex_straight_male_3.25mm(Technical Reference)
pdf icon
15111100301 Datasheet(Datasheets)
pdf icon
15120682601000 Prod Declaration Cert(Datasheets)
pdf icon
1512xxx601xxx Drawing(Product Drawings)
