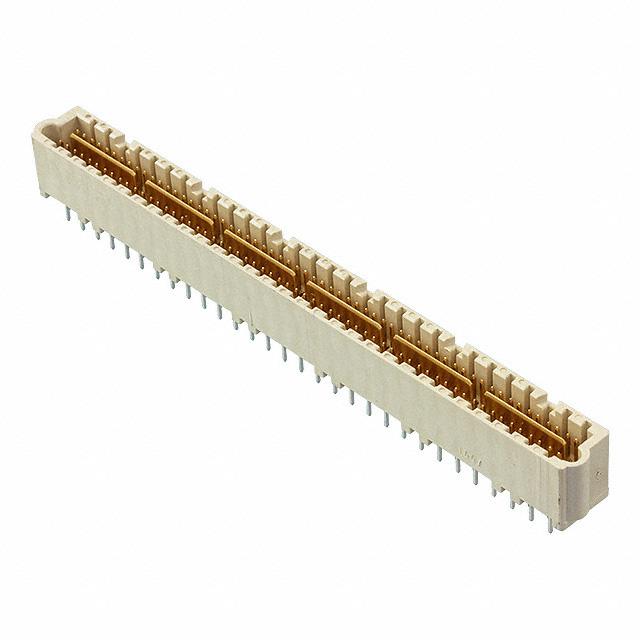

TE Connectivity AMP Connectors 5536280-5

5536280-5 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
120
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.340" (8.64mm)
Voltage Rating:
30VAC
REACH Status:
Vendor Undefined
edacadModel:
5536280-5 Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2261612
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
10.92mm
Insulation Material:
Thermoplastic
Package:
Tube
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Plug
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.095" (2.41mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Ground Bus (Plane)
Mounting Type:
Through Hole
Series:
Micro-Strip
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
5536280
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5536280-5. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 120. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.340" (8.64mm) of insulation height. Moreover, the product has a nominal 30vac voltage rating. In addition, it is vendor undefined. It comes in 2 of rows. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 10.92mm. It has a robust thermoplastic insulation material. It is shipped in tube package . It carries 0.100" (2.54mm) of row spacing. plug Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. 0.095" (2.41mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include ground bus (plane). The product is available in through hole configuration. The product micro-strip, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 5536280, a base product number of the product. The product is designated with the ear99 code number.
