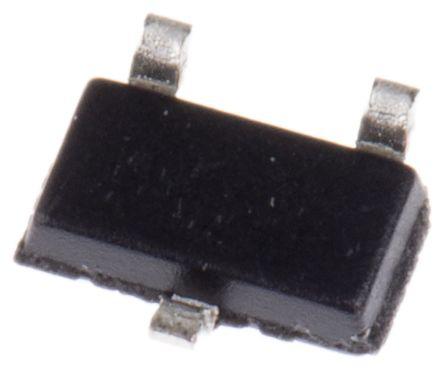

DiodesZetex AH180N-WSG-7, Omnipolar Omnipolar Hall Effect Switch 3-Pin TSOT-23, 2.5 → 5.5 V

AH180N-WSG-7 DiodesZetex , Omnipolar Omnipolar Hall Effect Switch 3-Pin TSOT-23, 2.5 → 5.5 V
AH180N-WSG-7
DiodesZetex

Product Information

Minimum Magnetic Sensor Release Point:
10 Gs
Dimensions:
3 x 1.7 x 0.775mm
Mounting Type:
Surface Mount
Typical Magnetic Sensor Hysteresis:
10 Gs
Minimum Operating Supply Voltage:
2.5 V
Height:
0.775mm
Width:
1.7mm
Length:
3mm
Package Type:
TSOT-23
Maximum Magnetic Sensor Operating Point:
50 Gs
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Magnetic Type:
Omnipolar
Maximum Operating Temperature:
+85 °C
Pin Count:
3
RoHs Compliant
Checking for live stock

This is Omnipolar Omnipolar Hall Effect Switch 3-Pin TSOT-23 2.5 → 5.5 V manufactured by DiodesZetex. The manufacturer part number is AH180N-WSG-7. It has about 10 gs minimum magnetic sensor release point . The given dimensions of the product include 3 x 1.7 x 0.775mm. The product is available in surface mount configuration. Its typical magnetic sensor hysteresis is 10 gs . While its minimum operating supply voltage is 2.5 v. In addition, the height is 0.775mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3mm. The package is a sort of tsot-23. Additionally, it has a maximum 50 gs magnetic sensor operating point . Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. Moreover, its magnetic type is omnipolar . It has a maximum operating temperature of +85 °c. It contains 3 pins.

pdf icon
Micropower Omnipolar Hall-Effect Switch Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AH180N-WSG-7 on website for other similar products.
We accept all major payment methods for all products including ET14058312. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with AH180N-WSG-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Hall Effect Sensor ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of DiodesZetex AH180N-WSG-7, Omnipolar Omnipolar Hall Effect Switch 3-Pin TSOT-23, 2.5 → 5.5 V. You can also check on our website or by contacting our customer support team for further order details on DiodesZetex AH180N-WSG-7, Omnipolar Omnipolar Hall Effect Switch 3-Pin TSOT-23, 2.5 → 5.5 V.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14058312 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14058312.
Yes. We ship AH180N-WSG-7 Internationally to many countries around the world.
