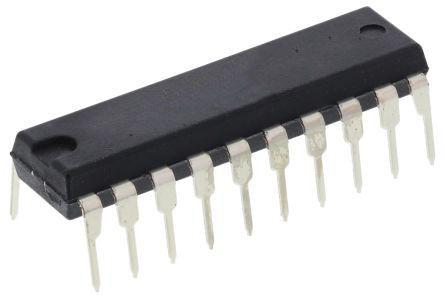

Maxim MAX508BCPP+, Parallel DAC, 20-Pin PDIP

MAX508BCPP- Maxim MAX508BCPP+, Parallel DAC, 20-Pin PDIP
Maxim

Product Information

Voltage Reference:
Internal
Integral Nonlinearity Error:
±1LSB
Digital Interface Type:
Parallel
Dimensions:
26.54 x 7.87 x 4.45mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Maximum Settling Time:
5µs
Typical Single Supply Voltage:
15.75 (Maximum) V
Height:
4.45mm
Width:
7.87mm
Length:
26.54mm
Full Scale Error:
±0.6%FSR
Package Type:
PDIP
Minimum Operating Temperature:
0 °C
Maximum Operating Temperature:
+70 °C
Resolution:
12 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is Parallel DAC 20-Pin PDIP manufactured by Maxim. The manufacturer part number is MAX508BCPP+. The product has internal voltage reference. Its integral nonlinearity error is ±1lsb . Additionally, the product has a/an parallel type digital interface . The given dimensions of the product include 26.54 x 7.87 x 4.45mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. The product has a maximum 5µs setting time . It has a typical single supply voltage of 15.75 (maximum) v. In addition, the height is 4.45mm. Furthermore, the product is 7.87mm wide. Its accurate length is 26.54mm. It has a full scale error of ±0.6%fsr . The package is a sort of pdip. Whereas, the minimum operating temperature of the product is 0 °c. It has a maximum operating temperature of +70 °c. Features 12 bit resolution. It contains 20 pins.
