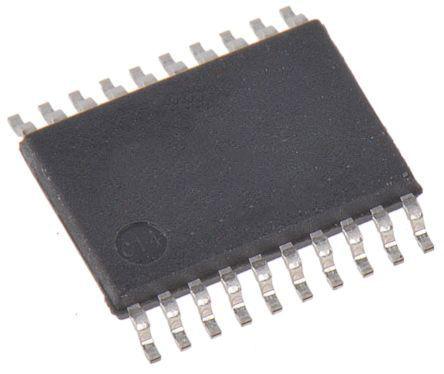

Maxim MAX5825BAUP+, 8-Channel DAC, 20-Pin TSSOP

MAX5825BAUP- Maxim MAX5825BAUP+, 8-Channel DAC, 20-Pin TSSOP
Maxim

Product Information

Voltage Reference:
External, Internal
Integral Nonlinearity Error:
±1LSB
Dimensions:
6.6 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Number of DAC Channels:
8
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
4.5 (Typ.)µs
Typical Single Supply Voltage:
2.7 → 5.5 V
Height:
0.95mm
Width:
4.5mm
Length:
6.6mm
Full Scale Error:
±0.5%FSR
Package Type:
TSSOP
Output Polarity:
Bipolar, Unipolar
Maximum Operating Temperature:
+125 °C
Resolution:
12 bit
Pin Count:
20
RoHs Compliant
Checking for live stock

This is 8-Channel DAC 20-Pin TSSOP manufactured by Maxim. The manufacturer part number is MAX5825BAUP+. The product has external, internal voltage reference. Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 6.6 x 4.5 x 0.95mm. The product is available in surface mount configuration. Additionally, it includes 8 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 4.5 (typ.)µs setting time . It has a typical single supply voltage of 2.7 → 5.5 v. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 6.6mm. It has a full scale error of ±0.5%fsr . The package is a sort of tssop. It has bipolar, unipolar polarity . It has a maximum operating temperature of +125 °c. Features 12 bit resolution. It contains 20 pins.

pdf icon
MAX5825BAUP+ - Datasheet(Technical Reference)
