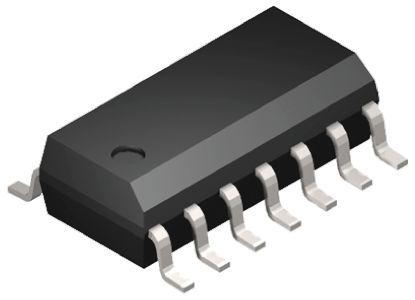

Maxim MAX5717GSD+, 16 bit DAC, 14-Pin SOIC

MAX5717GSD- Maxim MAX5717GSD+, 16 bit DAC, 14-Pin SOIC
Maxim

Product Information

Voltage Reference:
Internal
Integral Nonlinearity Error:
64LSB
Dimensions:
8.75 x 4 x 1.5mm
Mounting Type:
Surface Mount
Number of DAC Channels:
1
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Maximum Settling Time:
1.5µs
Typical Single Supply Voltage:
4.5 → 5.5 V
Height:
1.5mm
Width:
4mm
Length:
8.75mm
Package Type:
SOIC
Architecture:
R-2R
Output Polarity:
Unipolar
Maximum Operating Temperature:
+105 °C
Resolution:
16 bit
Pin Count:
14
RoHs Compliant
Checking for live stock

This is 16 bit DAC 14-Pin SOIC manufactured by Maxim. The manufacturer part number is MAX5717GSD+. The product has internal voltage reference. Its integral nonlinearity error is 64lsb . The given dimensions of the product include 8.75 x 4 x 1.5mm. The product is available in surface mount configuration. Additionally, it includes 1 standard DAC channels . It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 1.5µs setting time . It has a typical single supply voltage of 4.5 → 5.5 v. In addition, the height is 1.5mm. Furthermore, the product is 4mm wide. Its accurate length is 8.75mm. The package is a sort of soic. The product has been designed as r-2r. It has unipolar polarity . It has a maximum operating temperature of +105 °c. Features 16 bit resolution. It contains 14 pins.
