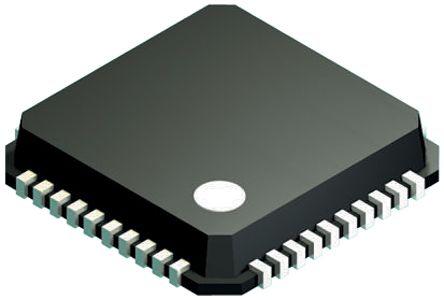

Analog Devices AD9117BCPZN, 2-channel 14 bit Serial DAC, 125Msps, 40-Pin LFCSP WQ

AD9117BCPZN Analog Devices , 2-channel 14 bit Serial DAC, 125Msps, 40-Pin LFCSP WQ
Analog Devices

Product Information

Conversion Rate:
125Msps
Typical Dual Supply Voltage:
1.7 → 3.5V
Integral Nonlinearity Error:
±1.2 (3.3V) LSB, ±1.8 (1.8V) LSB
Digital Interface Type:
Serial (SPI)
Dimensions:
6.1 x 6.1 x 0.75mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Dual
Maximum Settling Time:
11.5ns
Height:
0.75mm
Width:
6.1mm
Length:
6.1mm
Full Scale Error:
±2%FSR
Package Type:
LFCSP WQ
Architecture:
R-2R
Minimum Operating Temperature:
-40 °C
Voltage Reference:
External, Internal
Maximum Operating Temperature:
+85 °C
Resolution:
14 bit
Pin Count:
40
RoHs Compliant
Checking for live stock

This is 2-channel 14 bit Serial DAC 125Msps 40-Pin LFCSP WQ manufactured by Analog Devices. The manufacturer part number is AD9117BCPZN. Its conversion rate is 125msps . While 1.7 → 3.5v is the typical dual supply voltage. Its integral nonlinearity error is ±1.2 (3.3v) lsb, ±1.8 (1.8v) lsb . Additionally, the product has a/an serial (spi) type digital interface . The given dimensions of the product include 6.1 x 6.1 x 0.75mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of dual power supply. The product has a maximum 11.5ns setting time . In addition, the height is 0.75mm. Furthermore, the product is 6.1mm wide. Its accurate length is 6.1mm. It has a full scale error of ±2%fsr . The package is a sort of lfcsp wq. The product has been designed as r-2r. Whereas, the minimum operating temperature of the product is -40 °c. The product has external, internal voltage reference. It has a maximum operating temperature of +85 °c. Features 14 bit resolution. It contains 40 pins.
