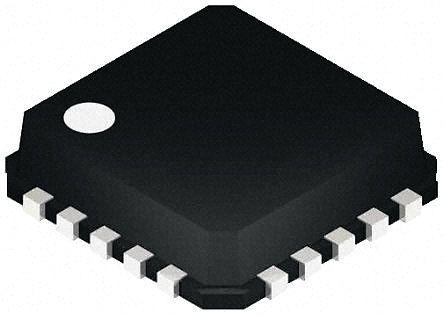

Analog Devices AD5433YCPZ, 10 bit Parallel DAC, 20.4Msps, 20-Pin LFCSP WQ

AD5433YCPZ Analog Devices , 10 bit Parallel DAC, 20.4Msps, 20-Pin LFCSP WQ
Analog Devices

Product Information

Integral Nonlinearity Error:
±0.5LSB
Dimensions:
4.1 x 4.1 x 0.75mm
Resolution:
10 bit
Width:
4.1mm
Digital Interface Type:
Parallel
Number of DAC Channels:
1
Power Supply Type:
Single
Package Type:
LFCSP WQ
Maximum Operating Temperature:
+125 °C
Typical Single Supply Voltage:
2.5 → 5.5 V
Full Scale Error:
±10mV
Architecture:
R-2R
Output Polarity:
Bipolar, Unipolar
Maximum Settling Time:
120µs
Pin Count:
20
Conversion Rate:
20.4Msps
Mounting Type:
Surface Mount
Length:
4.1mm
Height:
0.75mm
Minimum Operating Temperature:
-40 °C
Voltage Reference:
External
RoHs Compliant
Checking for live stock

This is 10 bit Parallel DAC 20.4Msps 20-Pin LFCSP WQ manufactured by Analog Devices. The manufacturer part number is AD5433YCPZ. Its integral nonlinearity error is ±0.5lsb . The given dimensions of the product include 4.1 x 4.1 x 0.75mm. Features 10 bit resolution. Furthermore, the product is 4.1mm wide. Additionally, the product has a/an parallel type digital interface . Additionally, it includes 1 standard DAC channels . It is a type of single power supply. The package is a sort of lfcsp wq. It has a maximum operating temperature of +125 °c. It has a typical single supply voltage of 2.5 → 5.5 v. It has a full scale error of ±10mv . The product has been designed as r-2r. It has bipolar, unipolar polarity . The product has a maximum 120µs setting time . It contains 20 pins. Its conversion rate is 20.4msps . The product is available in surface mount configuration. Its accurate length is 4.1mm. In addition, the height is 0.75mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has external voltage reference.

pdf icon
8-/10-/12-Bit Multiplying DACs with Parallel Interface(Technical Reference)
