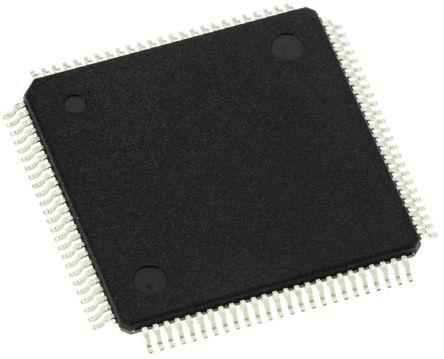

Analog Devices AD9776ABSVZ, 2-channel 12 bit Serial DAC, 1000Msps, 100-Pin TQFP

AD9776ABSVZ Analog Devices , 2-channel 12 bit Serial DAC, 1000Msps, 100-Pin TQFP
Analog Devices

Product Information

Conversion Rate:
1000Msps
Typical Dual Supply Voltage:
3.13 → 3.47V
Integral Nonlinearity Error:
±0.86LSB
Digital Interface Type:
Serial (SPI)
Dimensions:
14 x 14 x 1.05mm
Mounting Type:
Surface Mount
Number of DAC Channels:
2
Power Supply Type:
Dual
Height:
1.05mm
Width:
14mm
Length:
14mm
Full Scale Error:
±2%FSR
Package Type:
TQFP
Minimum Operating Temperature:
-40 °C
Voltage Reference:
Internal
Maximum Operating Temperature:
+85 °C
Resolution:
12 bit
Pin Count:
100
RoHs Compliant
Checking for live stock

This is 2-channel 12 bit Serial DAC 1000Msps 100-Pin TQFP manufactured by Analog Devices. The manufacturer part number is AD9776ABSVZ. Its conversion rate is 1000msps . While 3.13 → 3.47v is the typical dual supply voltage. Its integral nonlinearity error is ±0.86lsb . Additionally, the product has a/an serial (spi) type digital interface . The given dimensions of the product include 14 x 14 x 1.05mm. The product is available in surface mount configuration. Additionally, it includes 2 standard DAC channels . It is a type of dual power supply. In addition, the height is 1.05mm. Furthermore, the product is 14mm wide. Its accurate length is 14mm. It has a full scale error of ±2%fsr . The package is a sort of tqfp. Whereas, the minimum operating temperature of the product is -40 °c. The product has internal voltage reference. It has a maximum operating temperature of +85 °c. Features 12 bit resolution. It contains 100 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
Dual 12-/14-/16-Bit 1 GSPS DAC(Technical Reference)
