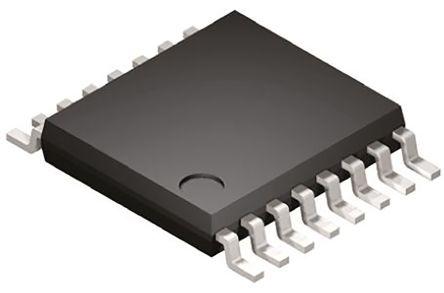

Analog Devices AD5555CRUZ, 2-channel 14 bit Serial DAC, 2Msps, 16-Pin TSSOP

AD5555CRUZ Analog Devices , 2-channel 14 bit Serial DAC, 2Msps, 16-Pin TSSOP
AD5555CRUZ
Analog Devices

Product Information

Integral Nonlinearity Error:
±1LSB
Dimensions:
5 x 4.4 x 1.05mm
Resolution:
14 bit
Width:
4.4mm
Digital Interface Type:
Serial (SPI)
Number of DAC Channels:
2
Power Supply Type:
Single
Package Type:
TSSOP
Maximum Operating Temperature:
+85 °C
Length:
5mm
Full Scale Error:
±4mV
Architecture:
Current Steering, R-2R
Output Polarity:
Unipolar
Maximum Settling Time:
0.5µs
Pin Count:
16
Conversion Rate:
2Msps
Mounting Type:
Surface Mount
Typical Single Supply Voltage:
5 V
Height:
1.05mm
Minimum Operating Temperature:
-40 °C
Voltage Reference:
External
RoHs Compliant
Checking for live stock

This is 2-channel 14 bit Serial DAC 2Msps 16-Pin TSSOP manufactured by Analog Devices. The manufacturer part number is AD5555CRUZ. Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 5 x 4.4 x 1.05mm. Features 14 bit resolution. Furthermore, the product is 4.4mm wide. Additionally, the product has a/an serial (spi) type digital interface . Additionally, it includes 2 standard DAC channels . It is a type of single power supply. The package is a sort of tssop. It has a maximum operating temperature of +85 °c. Its accurate length is 5mm. It has a full scale error of ±4mv . The product has been designed as current steering, r-2r. It has unipolar polarity . The product has a maximum 0.5µs setting time . It contains 16 pins. Its conversion rate is 2msps . The product is available in surface mount configuration. It has a typical single supply voltage of 5 v. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -40 °c. The product has external voltage reference.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AD5545/AD5555, Dual, Current-Output, Serial-Input, 16-/14-Bit DACs(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD5555CRUZ on website for other similar products.
We accept all major payment methods for all products including ET13831644. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD5555CRUZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose DACs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD5555CRUZ, 2-channel 14 bit Serial DAC, 2Msps, 16-Pin TSSOP. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD5555CRUZ, 2-channel 14 bit Serial DAC, 2Msps, 16-Pin TSSOP.
