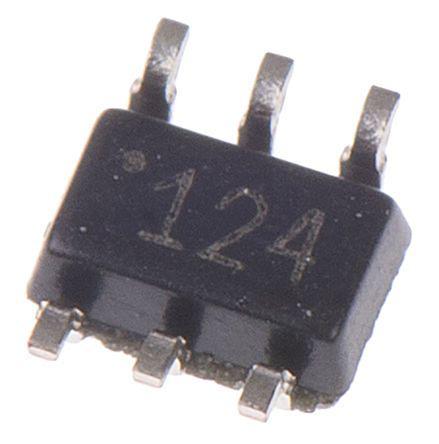

Analog Devices AD5602YKSZ-2500RL7, 8 bit Serial DAC, 1.7Msps, 6-Pin SC-70

AD5602YKSZ-2500RL7 Analog Devices , 8 bit Serial DAC, 1.7Msps, 6-Pin SC-70
AD5602YKSZ-2500RL7
Analog Devices

Product Information

Integral Nonlinearity Error:
±0.5LSB
Dimensions:
2.2 x 1.35 x 1mm
Resolution:
8 bit
Width:
1.35mm
Digital Interface Type:
Serial
Number of DAC Channels:
1
Power Supply Type:
Single
Package Type:
SC-70
Maximum Operating Temperature:
+125 °C
Typical Single Supply Voltage:
2.7 → 5.5 V
Full Scale Error:
0.5mV
Architecture:
Resistor String
Output Polarity:
Bipolar
Maximum Settling Time:
10µs
Pin Count:
6
Conversion Rate:
1.7Msps
Mounting Type:
Surface Mount
Length:
2.2mm
Height:
1mm
Minimum Operating Temperature:
-40 °C
RoHs Compliant
Checking for live stock

This is 8 bit Serial DAC 1.7Msps 6-Pin SC-70 manufactured by Analog Devices. The manufacturer part number is AD5602YKSZ-2500RL7. Its integral nonlinearity error is ±0.5lsb . The given dimensions of the product include 2.2 x 1.35 x 1mm. Features 8 bit resolution. Furthermore, the product is 1.35mm wide. Additionally, the product has a/an serial type digital interface . Additionally, it includes 1 standard DAC channels . It is a type of single power supply. The package is a sort of sc-70. It has a maximum operating temperature of +125 °c. It has a typical single supply voltage of 2.7 → 5.5 v. It has a full scale error of 0.5mv . The product has been designed as resistor string. It has bipolar polarity . The product has a maximum 10µs setting time . It contains 6 pins. Its conversion rate is 1.7msps . The product is available in surface mount configuration. Its accurate length is 2.2mm. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c.
