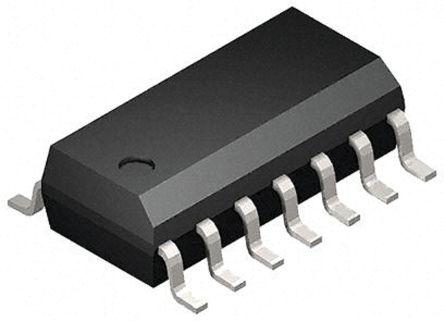

Linear Technology LTC1596-1ACSW#PBF, 16 bit Serial DAC, 200ksps, 16-Pin SOIC W

LTC1596-1ACSW-PBF Linear Technology LTC1596-1ACSW#PBF, 16 bit Serial DAC, 200ksps, 16-Pin SOIC W
LTC1596-1ACSW#PBF
LTC1596-1ACSW#PBF
ET12180638
ET12180638
Linear Technology

Product Information

Integral Nonlinearity Error:
±1LSB
Dimensions:
10.49 x 7.595 x 2.337mm
Resolution:
16 bit
Width:
7.595mm
Digital Interface Type:
Serial (SPI)
Number of DAC Channels:
1
Power Supply Type:
Single
Package Type:
SOIC W
Maximum Operating Temperature:
+70 °C
Typical Single Supply Voltage:
5 V
Full Scale Error:
6.5LSB
Architecture:
R-2R, Resistor String
Output Polarity:
Bipolar, Unipolar
Maximum Settling Time:
1µs
Pin Count:
16
Conversion Rate:
200ksps
Mounting Type:
Surface Mount
Length:
10.49mm
Height:
2.33mm
Minimum Operating Temperature:
0 °C
Voltage Reference:
External
RoHs Compliant
Checking for live stock

This is 16 bit Serial DAC 200ksps 16-Pin SOIC W manufactured by Linear Technology. The manufacturer part number is LTC1596-1ACSW#PBF. Its integral nonlinearity error is ±1lsb . The given dimensions of the product include 10.49 x 7.595 x 2.337mm. Features 16 bit resolution. Furthermore, the product is 7.595mm wide. Additionally, the product has a/an serial (spi) type digital interface . Additionally, it includes 1 standard DAC channels . It is a type of single power supply. The package is a sort of soic w. It has a maximum operating temperature of +70 °c. It has a typical single supply voltage of 5 v. It has a full scale error of 6.5lsb . The product has been designed as r-2r, resistor string. It has bipolar, unipolar polarity . The product has a maximum 1µs setting time . It contains 16 pins. Its conversion rate is 200ksps . The product is available in surface mount configuration. Its accurate length is 10.49mm. In addition, the height is 2.33mm. Whereas, the minimum operating temperature of the product is 0 °c. The product has external voltage reference.

pdf icon
Serial 16-Bit Multiplying DAC Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
