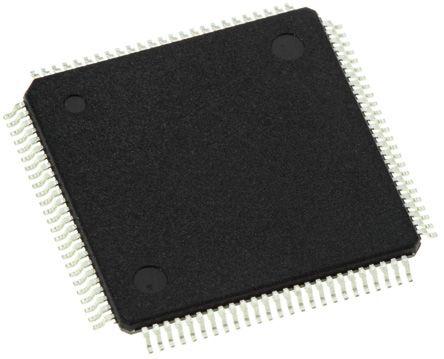

Analog Devices AD9445BSVZ-125, 14-bit Parallel ADC Differential Input, 100-Pin TQFP

AD9445BSVZ-125 Analog Devices , 14-bit Parallel ADC Differential Input, 100-Pin TQFP
Analog Devices

Product Information

Number of ADCs:
1
Number of Input Channels:
1
Integral Nonlinearity Error:
±2LSB
Digital Interface Type:
Parallel
Dimensions:
14 x 14 x 1.05mm
Mounting Type:
Surface Mount
Input Signal Type:
Differential
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Typical Single Supply Voltage:
3.3 V, 5 V
Height:
1.05mm
Width:
14mm
Length:
14mm
Package Type:
TQFP
Architecture:
Pipelined
Input Type:
Voltage
Sampling Rate:
125Msps
Maximum Operating Temperature:
+85 °C
Resolution:
14-bit
Pin Count:
100
RoHs Compliant
Checking for live stock

This is 14-bit Parallel ADC Differential Input 100-Pin TQFP manufactured by Analog Devices. The manufacturer part number is AD9445BSVZ-125. It contains 1 ADCs . It contains 1 input channels . Its integral nonlinearity error is ±2lsb . Additionally, the product has a/an parallel type digital interface . The given dimensions of the product include 14 x 14 x 1.05mm. The product is available in surface mount configuration. The input signal is a kind of differential signal. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. It has a typical single supply voltage of 3.3 v, 5 v. In addition, the height is 1.05mm. Furthermore, the product is 14mm wide. Its accurate length is 14mm. The package is a sort of tqfp. The product has been designed as pipelined. It carries voltage input type. It has about 125msps sampling rate . It has a maximum operating temperature of +85 °c. Features 14-bit resolution. It contains 100 pins.
