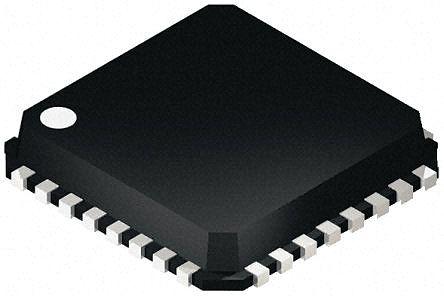

Analog Devices AD9245BCPZ-40, 14-bit Parallel ADC Differential, Single Ended Input, 32-Pin LFCSP

AD9245BCPZ-40 Analog Devices , 14-bit Parallel ADC Differential, Single Ended Input, 32-Pin LFCSP
Analog Devices

Product Information

Number of ADCs:
1
Number of Input Channels:
1
Integral Nonlinearity Error:
±3.4LSB
Digital Interface Type:
Parallel
Dimensions:
5.1 x 5.1 x 0.75mm
Mounting Type:
Surface Mount
Input Signal Type:
Differential, Single Ended
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Typical Single Supply Voltage:
3 V
Height:
0.75mm
Width:
5.1mm
Length:
5.1mm
Package Type:
LFCSP
Architecture:
Pipelined
Input Type:
Voltage
Sampling Rate:
40Msps
Maximum Operating Temperature:
+85 °C
Resolution:
14-bit
Pin Count:
32
RoHs Compliant
Checking for live stock

This is 14-bit Parallel ADC Differential Single Ended Input 32-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is AD9245BCPZ-40. It contains 1 ADCs . It contains 1 input channels . Its integral nonlinearity error is ±3.4lsb . Additionally, the product has a/an parallel type digital interface . The given dimensions of the product include 5.1 x 5.1 x 0.75mm. The product is available in surface mount configuration. The input signal is a kind of differential, single ended signal. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. It has a typical single supply voltage of 3 v. In addition, the height is 0.75mm. Furthermore, the product is 5.1mm wide. Its accurate length is 5.1mm. The package is a sort of lfcsp. The product has been designed as pipelined. It carries voltage input type. It has about 40msps sampling rate . It has a maximum operating temperature of +85 °c. Features 14-bit resolution. It contains 32 pins.

pdf icon
Datasheet(Technical Reference)
pdf icon
14-Bit 3V ADC(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
