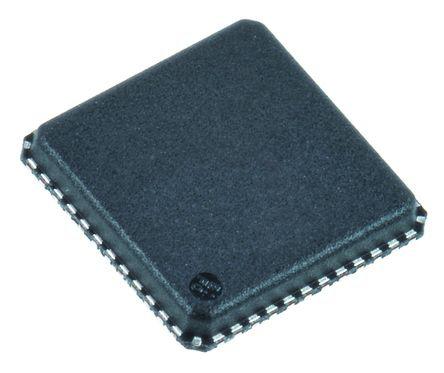

Analog Devices HMCAD1520, 14 bit Serial ADC 4-channel Differential Input, 48-Pin QFN

HMCAD1520 Analog Devices , 14 bit Serial ADC 4-channel Differential Input, 48-Pin QFN
Analog Devices

Product Information

Number of ADCs:
4
Digital Interface Type:
Serial-SPI
Dimensions:
7 x 7 x 1mm
Mounting Type:
Surface Mount
Input Signal Type:
Differential
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Typical Single Supply Voltage:
1.8 V
Height:
1mm
Width:
7mm
Length:
7mm
Integral Nonlinearity Error:
±0.6LSB
Package Type:
QFN
Architecture:
Pipelined
Input Type:
Analogue
Sampling Rate:
105Msps
Maximum Operating Temperature:
+85 °C
Resolution:
14 bit
Pin Count:
48
RoHs Compliant
Checking for live stock

This is 14 bit Serial ADC 4-channel Differential Input 48-Pin QFN manufactured by Analog Devices. The manufacturer part number is HMCAD1520. It contains 4 ADCs . Additionally, the product has a/an serial-spi type digital interface . The given dimensions of the product include 7 x 7 x 1mm. The product is available in surface mount configuration. The input signal is a kind of differential signal. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. It has a typical single supply voltage of 1.8 v. In addition, the height is 1mm. Furthermore, the product is 7mm wide. Its accurate length is 7mm. Its integral nonlinearity error is ±0.6lsb . The package is a sort of qfn. The product has been designed as pipelined. It carries analogue input type. It has about 105msps sampling rate . It has a maximum operating temperature of +85 °c. Features 14 bit resolution. It contains 48 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search HMCAD1520 on website for other similar products.
We accept all major payment methods for all products including ET14157026. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with HMCAD1520 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose ADCs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices HMCAD1520, 14 bit Serial ADC 4-channel Differential Input, 48-Pin QFN. You can also check on our website or by contacting our customer support team for further order details on Analog Devices HMCAD1520, 14 bit Serial ADC 4-channel Differential Input, 48-Pin QFN.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14157026 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14157026.
Yes. We ship HMCAD1520 Internationally to many countries around the world.
