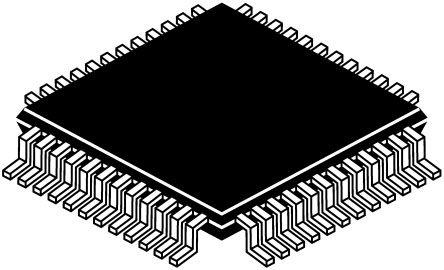

Analog Devices AD7661ASTZ, 16-Bit Serial ADC Pseudo Differential Input, 48-Pin LQFP

AD7661ASTZ Analog Devices , 16-Bit Serial ADC Pseudo Differential Input, 48-Pin LQFP
Analog Devices

Product Information

Number of ADCs:
1
Number of Input Channels:
1
Integral Nonlinearity Error:
±2.5LSB
Digital Interface Type:
Serial
Dimensions:
7 x 7 x 1.4mm
Mounting Type:
Surface Mount
Input Signal Type:
Pseudo Differential
Maximum Operating Temperature:
+85 °C
Minimum Operating Temperature:
-40 °C
Typical Single Supply Voltage:
5 V
Height:
1.4mm
Width:
7mm
Length:
7mm
Package Type:
LQFP
Architecture:
SAR
Input Type:
Voltage
Sampling Rate:
100ksps
Resolution:
16-bit
Pin Count:
48
RoHs Compliant
Checking for live stock

This is 16-Bit Serial ADC Pseudo Differential Input 48-Pin LQFP manufactured by Analog Devices. The manufacturer part number is AD7661ASTZ. It contains 1 ADCs . It contains 1 input channels . Its integral nonlinearity error is ±2.5lsb . Additionally, the product has a/an serial type digital interface . The given dimensions of the product include 7 x 7 x 1.4mm. The product is available in surface mount configuration. The input signal is a kind of pseudo differential signal. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c. It has a typical single supply voltage of 5 v. In addition, the height is 1.4mm. Furthermore, the product is 7mm wide. Its accurate length is 7mm. The package is a sort of lqfp. The product has been designed as sar. It carries voltage input type. It has about 100ksps sampling rate . Features 16-bit resolution. It contains 48 pins.
