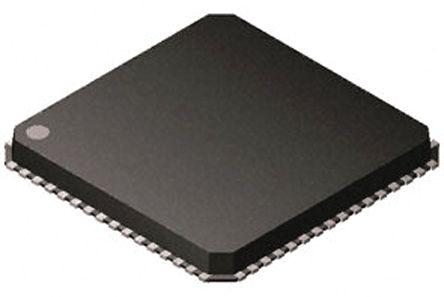

Analog Devices AD9234BCPZ-1000, 12 bit Serial ADC Dual Differential Input, 64-Pin LFCSP WQ

AD9234BCPZ-1000 Analog Devices , 12 bit Serial ADC Dual Differential Input, 64-Pin LFCSP WQ
Analog Devices

Product Information

Number of ADCs:
2
Digital Interface Type:
Serial (3 Wire, SPI)
Dimensions:
9.1 x 9.1 x 0.75mm
Mounting Type:
Surface Mount
Input Signal Type:
Differential
Power Supply Type:
Single
Minimum Operating Temperature:
-40 °C
Typical Single Supply Voltage:
1.25 V, 2.5 V, 3.3 V
Height:
0.75mm
Width:
9.1mm
Length:
9.1mm
Integral Nonlinearity Error:
+1.4LSB
Package Type:
LFCSP WQ
Architecture:
Pipelined
Input Type:
Voltage
Sampling Rate:
1000Msps
Maximum Operating Temperature:
+85 °C
Resolution:
12 bit
Pin Count:
64
RoHs Compliant
Checking for live stock

This is 12 bit Serial ADC Dual Differential Input 64-Pin LFCSP WQ manufactured by Analog Devices. The manufacturer part number is AD9234BCPZ-1000. It contains 2 ADCs . Additionally, the product has a/an serial (3 wire, spi) type digital interface . The given dimensions of the product include 9.1 x 9.1 x 0.75mm. The product is available in surface mount configuration. The input signal is a kind of differential signal. It is a type of single power supply. Whereas, the minimum operating temperature of the product is -40 °c. It has a typical single supply voltage of 1.25 v, 2.5 v, 3.3 v. In addition, the height is 0.75mm. Furthermore, the product is 9.1mm wide. Its accurate length is 9.1mm. Its integral nonlinearity error is +1.4lsb . The package is a sort of lfcsp wq. The product has been designed as pipelined. It carries voltage input type. It has about 1000msps sampling rate . It has a maximum operating temperature of +85 °c. Features 12 bit resolution. It contains 64 pins.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search AD9234BCPZ-1000 on website for other similar products.
We accept all major payment methods for all products including ET13809171. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with AD9234BCPZ-1000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in General Purpose ADCs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices AD9234BCPZ-1000, 12 bit Serial ADC Dual Differential Input, 64-Pin LFCSP WQ. You can also check on our website or by contacting our customer support team for further order details on Analog Devices AD9234BCPZ-1000, 12 bit Serial ADC Dual Differential Input, 64-Pin LFCSP WQ.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13809171 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13809171.
Yes. We ship AD9234BCPZ-1000 Internationally to many countries around the world.
