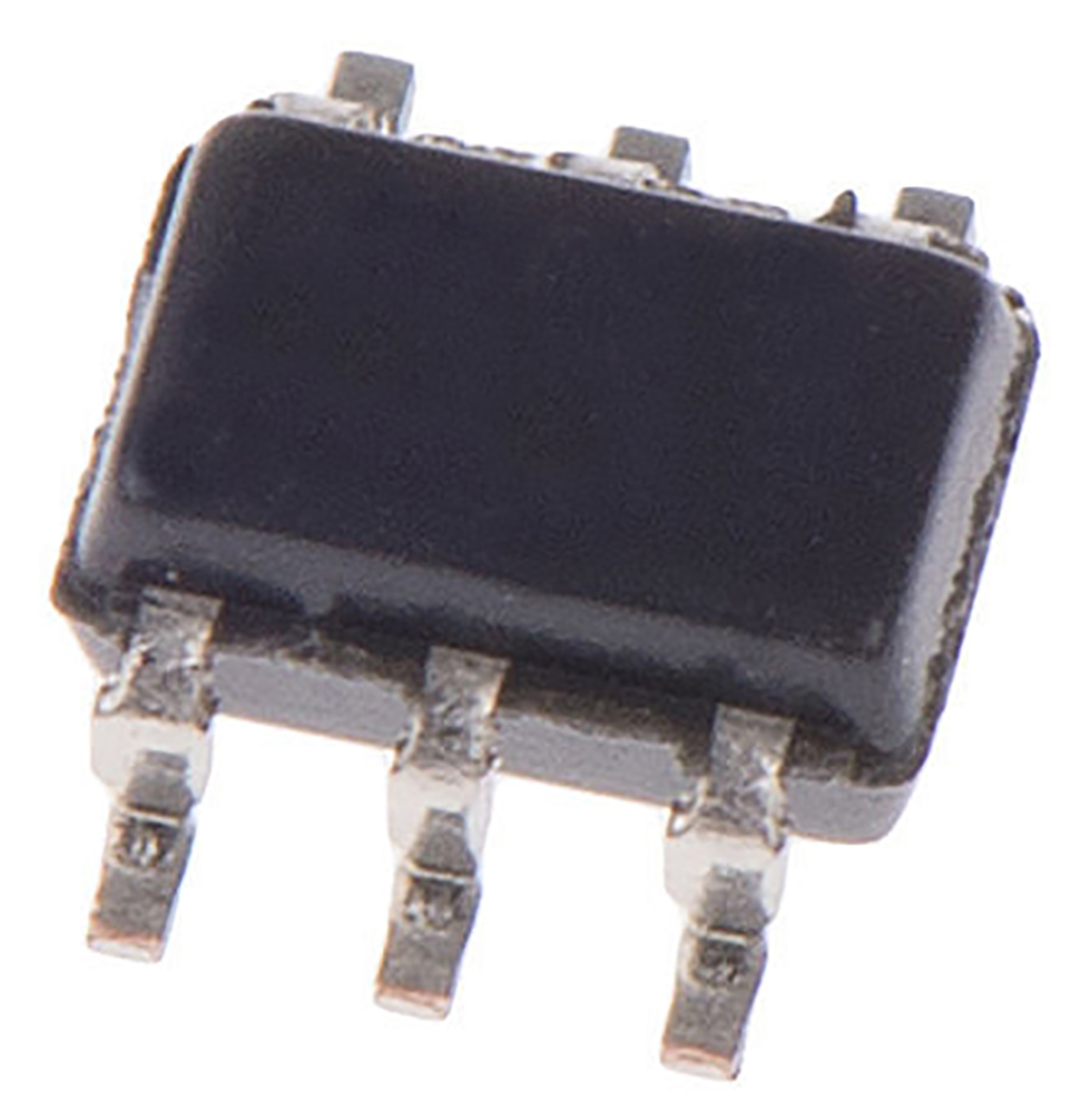

This is Dual Schmitt Trigger CMOS Inverter 6-Pin SC-70 manufactured by onsemi. The manufacturer part number is NC7WZ14P6X. The given dimensions of the product include 2 x 1.25 x 1mm. The logic family is lvcmos. Furthermore, the product is 1.25mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. It provides up to 4.9 ns @ 5 v, 6 ns @ 3.3 v maximum propagation delay time. While its minimum operating supply voltage is 1.65 v. The package is a sort of sc-70. It consists of 2 elements per chip. It has a maximum operating temperature of +85 °c. Its accurate length is 2mm. It contains 6 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes inverter. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. Features 50pf of propagation delay test condition. It is assigned with possible HTSUS value of 8542.39.0001. It is shipped in bulk package . In addition, it is reach unaffected. Its typical moisture sensitivity level is 1 (unlimited). Moreover, it corresponds to 7wz14, a base product number of the product. The product is designated with the ear99 code number.
For more information please check the datasheets.
