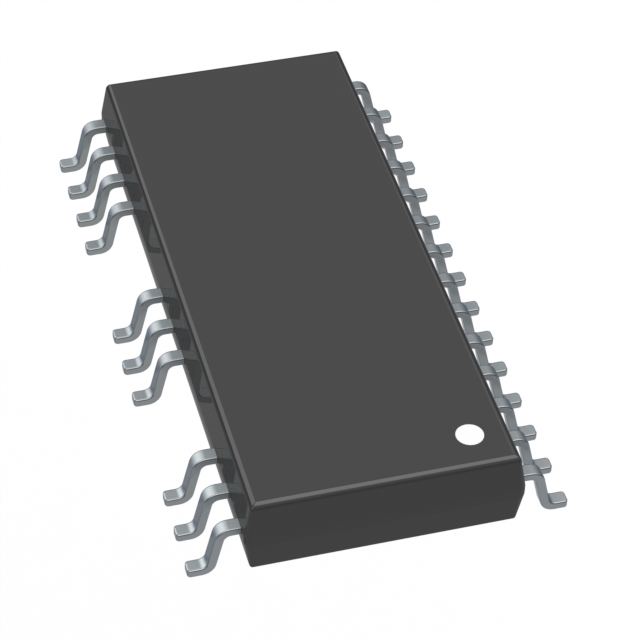

Infineon Technologies 6ED2231S12TXUMA1
Product Information
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
DigiKey Programmable:
Not Verified
Operating Temperature:
-40°C ~ 125°C (TA)
Input Type:
Non-Inverting
Package / Case:
28-SOIC (0.295", 7.50mm Width), 24 Leads
Current - Peak Output (Source, Sink):
350mA, 650mA
Rise / Fall Time (Typ):
35ns, 20ns
REACH Status:
REACH Unaffected
edacadModel:
6ED2231S12TXUMA1 Models
edacadModelUrl:
/en/models/17399488
Manufacturer:
Infineon Technologies
Gate Type:
IGBT, SiC MOSFET
Channel Type:
3-Phase
Moisture Sensitivity Level (MSL):
3 (168 Hours)
High Side Voltage - Max (Bootstrap):
1200 V
Logic Voltage - VIL, VIH:
0.7V, 2.3V
standardLeadTime:
12 Weeks
Driven Configuration:
Half-Bridge
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
PG-DSO-24-21
Number of Drivers:
6
Packaging:
Tape & Reel (TR)
Voltage - Supply:
13V ~ 20V
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 6ED2231S12TXUMA1 on website for other similar products.
We accept all major payment methods for all products including ET23672348. Please check your shopping cart at the time of order.
You can order Infineon Technologies brand products with 6ED2231S12TXUMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Gate Drivers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon Technologies 6ED2231S12TXUMA1. You can also check on our website or by contacting our customer support team for further order details on Infineon Technologies 6ED2231S12TXUMA1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23672348 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon Technologies" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23672348.
Yes. We ship 6ED2231S12TXUMA1 Internationally to many countries around the world.
This is manufactured by Infineon Technologies. The manufacturer part number is 6ED2231S12TXUMA1. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 125°c (ta) operating temperature range. It carries non-inverting input type. Moreover, the product comes in 28-soic (0.295", 7.50mm width), 24 leads. Features a peak output current of 350ma, 650ma. The typical rise and fall time of the product is 35ns, 20ns. In addition, it is reach unaffected. The infineon technologies's product offers user-desired applications. It is a igbt, sic mosfet gate. The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 3 (168 hours). The maximum high side voltage is 1200 v . Logic voltage of 0.7v, 2.3v. It has a long 12 weeks standard lead time. It has a half-bridge driven configuration. The product is available in surface mount configuration. pg-dso-24-21 is the supplier device package value. Number of Drivers equals 6. In addition, tape & reel (tr) is the available packaging type of the product. It has optimum voltage supply of 13v ~ 20v. The product is designated with the ear99 code number.
