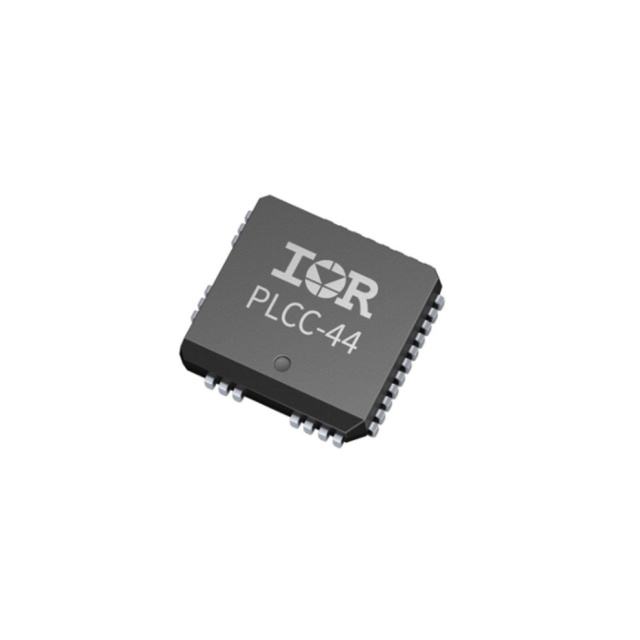

Infineon Technologies IR2137J

IR2137J Infineon Technologies
Infineon Technologies

Product Information

HTSUS:
8542.39.0060
RoHS Status:
RoHS non-compliant
Package / Case:
68-PLCC
Operating Temperature:
-40°C ~ 150°C (TJ)
Input Type:
Inverting
DigiKey Programmable:
Not Verified
Current - Peak Output (Source, Sink):
-
title:
IR2137J
Rise / Fall Time (Typ):
115ns, 25ns
REACH Status:
REACH Unaffected
Manufacturer:
Infineon Technologies
Gate Type:
IGBT
Channel Type:
3-Phase
Moisture Sensitivity Level (MSL):
1 (Unlimited)
High Side Voltage - Max (Bootstrap):
600 V
Logic Voltage - VIL, VIH:
-
Driven Configuration:
Half-Bridge
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
68-PLCC (24.23x24.23)
Number of Drivers:
3
Packaging:
Tube
Voltage - Supply:
12.5V ~ 20V
Base Product Number:
IR2137
ECCN:
EAR99
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is IR2137J. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs non-compliant. Moreover, the product comes in 68-plcc. The product has -40°c ~ 150°c (tj) operating temperature range. It carries inverting input type. The typical rise and fall time of the product is 115ns, 25ns. In addition, it is reach unaffected. The infineon technologies's product offers user-desired applications. It is a igbt gate. The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 1 (unlimited). The maximum high side voltage is 600 v . It has a half-bridge driven configuration. The product is available in surface mount configuration. 68-plcc (24.23x24.23) is the supplier device package value. Number of Drivers equals 3. In addition, tube is the available packaging type of the product. It has optimum voltage supply of 12.5v ~ 20v. Moreover, it corresponds to ir2137, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
IR2137/IR2237(J/Q)(Datasheets)
