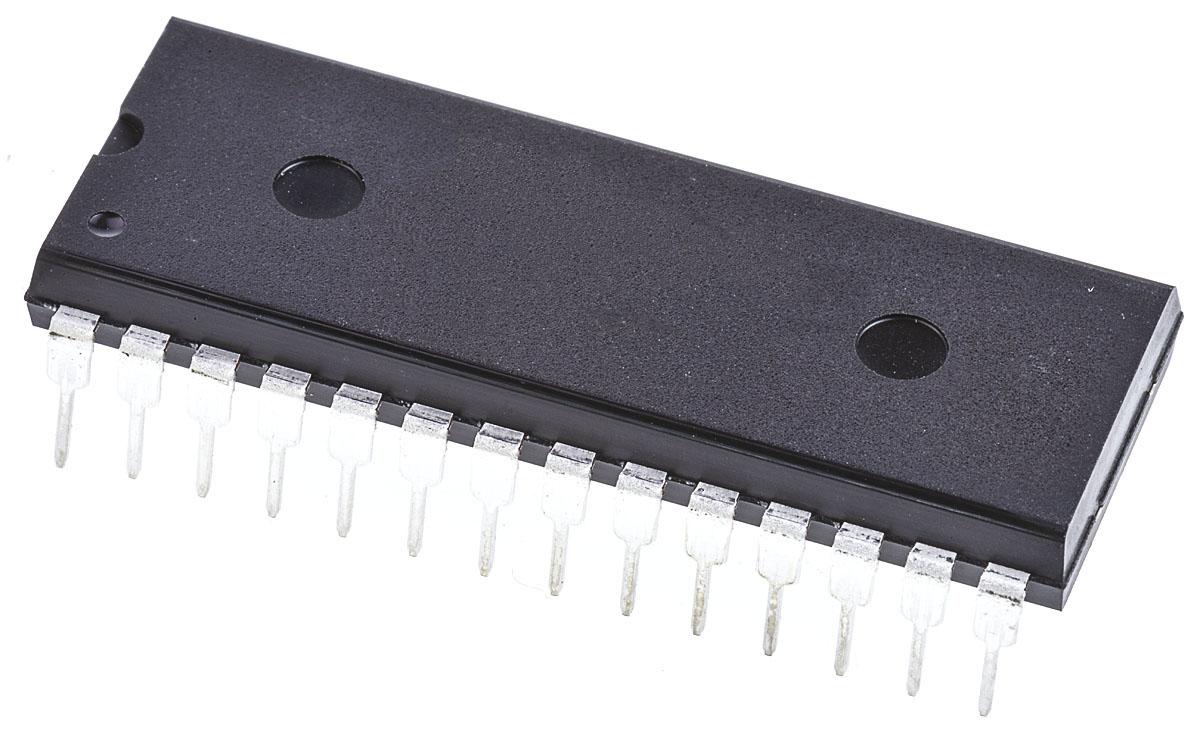

Infineon IR2233PBF Hex Half Bridge MOSFET Power Driver 500mA, 10 → 20 V, Inverting, PDIP 28-Pin

IR2233PBF Infineon Hex Half Bridge MOSFET Power Driver 500mA, 10 → 20 V, Inverting, PDIP 28-Pin

(0)

Product Information

Polarity:

Inverting

Number of Outputs:

Output Current:

500 mA

Mounting Type:

Through Hole

Bridge Type:

Half Bridge

High and Low Sides Dependency:

Independent

Number of Drivers:

Package Type:

PDIP

Supply Voltage:

20V

Pin Count:

Topology:

High and Low Side

Checking for live stock

This is Hex Half Bridge MOSFET Power Driver 500mA 10 → 20 V Inverting PDIP 28-Pin manufactured by Infineon. The manufacturer part number is IR2233PBF. While providing inverting polarity. Additionally, the product is supplied with 6 outputs. It carries 500 ma output current. The product is available in through hole configuration. It contains a/an half bridge type bridge . In addition, it has a/an independent high and low sides dependency . Number of Drivers equals 6. The package is a sort of pdip. Features 20v supply voltage. It contains 28 pins. Topology includes high and low side.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

IR2133/IR2135(J&S) & (PbF), IR2233/IR2235(J&S) & (PbF), 3-Phase Bridge Driver(Technical Reference)
