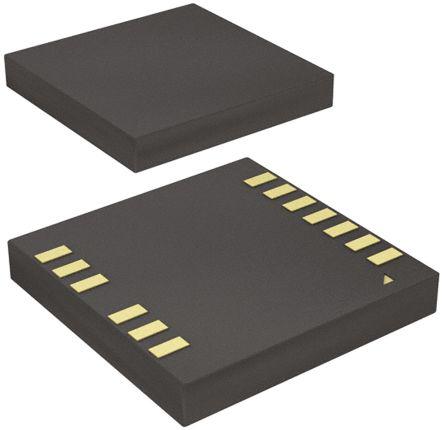

Analog Devices ADUM7223BCCZ Dual High and Low Side MOSFET Power Driver, 4A 13-Pin, LGA

ADUM7223BCCZ Analog Devices Dual High and Low Side MOSFET Power Driver, 4A 13-Pin, LGA
Analog Devices

Product Information

Polarity:
Inverting
Number of Outputs:
2
Output Current:
4 A
Mounting Type:
Surface Mount
Bridge Type:
Half Bridge
High and Low Sides Dependency:
Independent
Logic Type:
CMOS
Number of Drivers:
2
Package Type:
LGA
Supply Voltage:
5V
Rise Time:
24ns
Pin Count:
13
Topology:
High and Low Side
RoHs Compliant
Checking for live stock

This is Dual High and Low Side MOSFET Power Driver 4A 13-Pin LGA manufactured by Analog Devices. The manufacturer part number is ADUM7223BCCZ. While providing inverting polarity. Additionally, the product is supplied with 2 outputs. It carries 4 a output current. The product is available in surface mount configuration. It contains a/an half bridge type bridge . In addition, it has a/an independent high and low sides dependency . The product is a cmos logic type. Number of Drivers equals 2. The package is a sort of lga. Features 5v supply voltage. Whereas, the rise time is 24ns . It contains 13 pins. Topology includes high and low side.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
ADuM7223 Isolated Precision Half-Bridge Driver Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search ADUM7223BCCZ on website for other similar products.
We accept all major payment methods for all products including ET13948989. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with ADUM7223BCCZ directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Gate Drivers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices ADUM7223BCCZ Dual High and Low Side MOSFET Power Driver, 4A 13-Pin, LGA. You can also check on our website or by contacting our customer support team for further order details on Analog Devices ADUM7223BCCZ Dual High and Low Side MOSFET Power Driver, 4A 13-Pin, LGA.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13948989 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13948989.
Yes. We ship ADUM7223BCCZ Internationally to many countries around the world.
