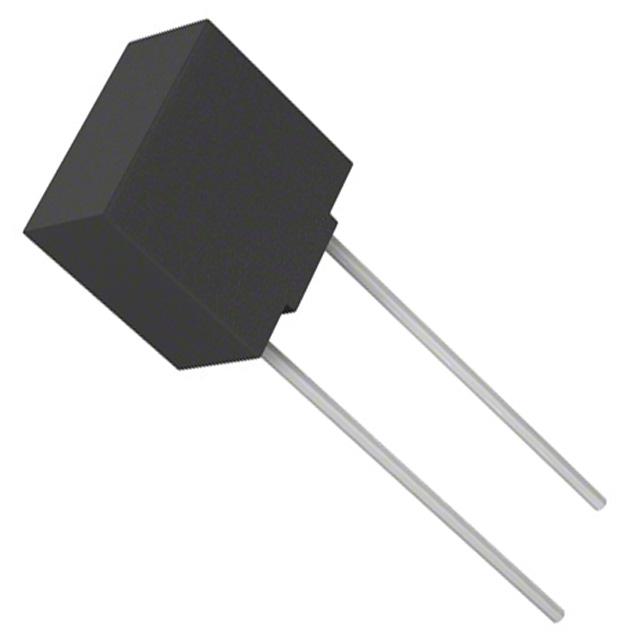

Eaton - Electronics Division SS-5-630MA-AP

SS-5-630MA-AP Eaton - Electronics Division
Eaton - Electronics Division

Product Information

HTSUS:
8536.10.0040
RoHS Status:
RoHS Compliant
Breaking Capacity @ Rated Voltage:
35A
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
CQC, cULus, EK-MARK, SEMKO, VDE
Package / Case:
Radial, Box
Voltage Rating - AC:
250 V
edacadModel:
SS-5-630MA-AP Models
Melting I²t:
1.51
DC Cold Resistance:
0.14 Ohms
edacadModelUrl:
/en/models/2081990
Response Time:
Slow Blow
Package:
Cut Tape (CT)
Size / Dimension:
0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm)
standardLeadTime:
11 Weeks
Current Rating (Amps):
630 mA
Moisture Sensitivity Level (MSL):
Not Applicable
Mounting Type:
Through Hole
Color:
-
Series:
SS-5
Fuse Type:
Board Mount (Cartridge Style Excluded)
ECCN:
EAR99
Checking for live stock

This is manufactured by Eaton - Electronics Division. The manufacturer part number is SS-5-630MA-AP. It is assigned with possible HTSUS value of 8536.10.0040. The product is rohs compliant. Whereas, the breaking capacity of the product at rated voltage is 35a. The product has -40°c ~ 125°c operating temperature range. It is approved by cqc, culus, ek-mark, semko, vde. Moreover, the product comes in radial, box. The product exhibits 250 v of AC voltage rating. It has a 1.51 melting I²t. The DC cold resistance of the item is 0.14 ohms. It responds within slow blow. It is shipped in cut tape (ct) package . The product's diameters include 0.335" l x 0.169" w x 0.329" h (8.50mm x 4.30mm x 8.35mm). It has a long 11 weeks standard lead time. Additionally, the product's output is 630 ma. Its typical moisture sensitivity level is not applicable. The product is available in through hole configuration. The product ss-5, is a highly preferred choice for users. It integrates a board mount (cartridge style excluded) fuse type. The product is designated with the ear99 code number.

pdf icon
CQC09012035490(China Compulsory Certificate)
pdf icon
S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014(PCN Design/Specification)
pdf icon
Mult Devs Design Chg 13/NOV/2019(PCN Design/Specification)
pdf icon
SS-5 Series(Datasheets)
pdf icon
Fuse Accessory Selection Guide(Datasheets)
pdf icon
PSE Mark 21/Dec/2019(PCN Packaging)
pdf icon
Shipping Box and Labels 05/Jan/2018(PCN Packaging)
