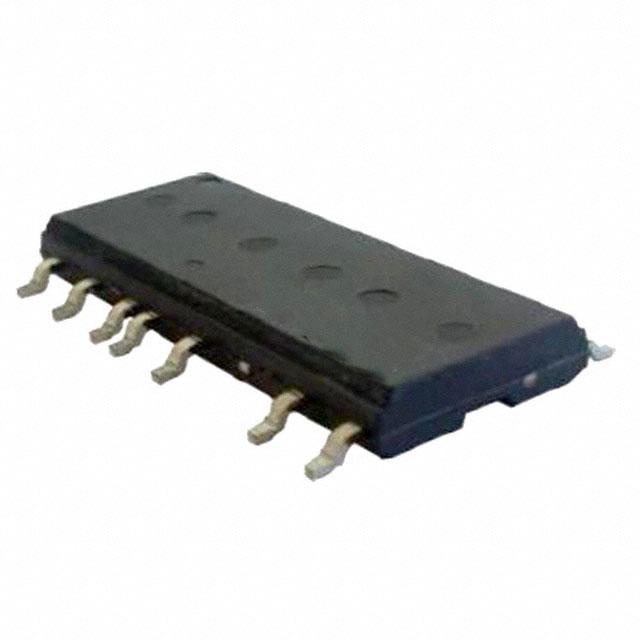

International Rectifier IRSM506-076PA

IRSM506-076PA International Rectifier
International Rectifier

Product Information

HTSUS:
8542.39.0001
RoHS Status:
Not applicable
Supplier Device Package:
23-SOP
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
23-PowerSMD Module
REACH Status:
REACH Unaffected
Applications:
AC Motors
Interface:
Logic
Current - Output / Channel:
4A
Package:
Tube
Load Type:
Inductive
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Features:
Bootstrap Circuit
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
480V (Max)
Fault Protection:
Shoot-Through, UVLO
Voltage - Supply:
13.5V ~ 16.5V
Current - Peak Output:
15A
Rds On (Typ):
-
Output Configuration:
Half Bridge (3)
Technology:
IGBT
Base Product Number:
IRSM506
ECCN:
EAR99
Checking for live stock

This is manufactured by International Rectifier. The manufacturer part number is IRSM506-076PA. It is assigned with possible HTSUS value of 8542.39.0001. The product is not applicable. 23-sop is the supplier device package value. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 23-powersmd module. In addition, it is reach unaffected. The product is widely employed in ac motors. A bespoke product is logic interface. It carries 4a output or channel current. It is shipped in tube package . Load Type Specs- inductive. Its typical moisture sensitivity level is 3 (168 hours). The splendid features of the product include bootstrap circuit. The product is available in surface mount configuration. The given load voltage is 480v (max). Fault protection features include shoot-through, uvlo. It has optimum voltage supply of 13.5v ~ 16.5v. It carries 15a peak current output. It boasts half bridge (3) output configuration. This product use igbt technology. Moreover, it corresponds to irsm506, a base product number of the product. The product is designated with the ear99 code number.
