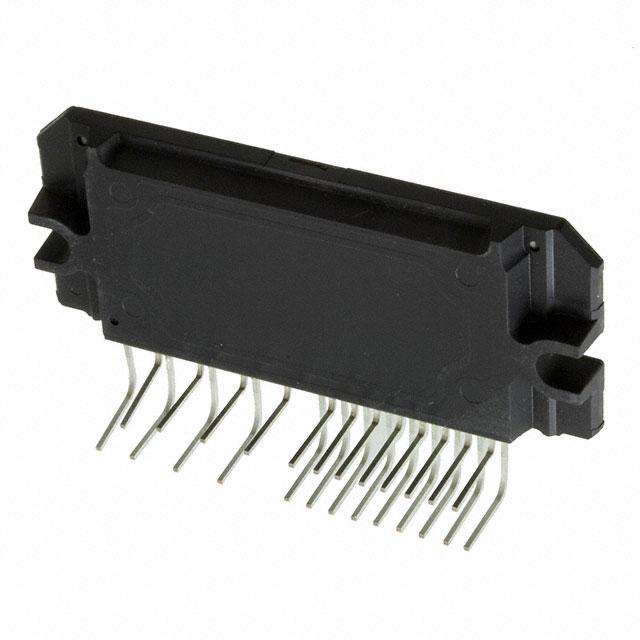

ON Semiconductor STK57FU394AG-E, AC/DC Motor Motor Driver IC, 600 V 36A 35-Pin, SIP

STK57FU394AG-E ON Semiconductor , AC/DC Motor Motor Driver IC, 600 V 36A 35-Pin, SIP
STK57FU394AG-E
onsemi

Product Information

Dimensions:
62.5 x 26.3 x 6mm
Inverter Power Rating:
35W
Width:
26.3mm
Height:
6mm
Motor Type:
AC/DC Motor
Minimum Operating Supply Voltage:
0 V
Package Type:
SIP
Typical Switching Frequency:
20kHz
Configuration:
3 Phase
Maximum Operating Temperature:
125 °C
Maximum IGBT Collector Current:
36A
Length:
62.5mm
Pin Count:
35
Maximum Operating Supply Voltage:
400 V
Mounting Type:
Surface Mount
Series:
STK
Maximum Collector Emitter Voltage:
600 V
Maximum Supply Voltage:
450 V
Minimum Operating Temperature:
-40 °C
Output Configuration:
Half Bridge, Single Ended
Maximum Output Current:
±15A
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
15A
Supplier Device Package:
35-SIP/SIP2A-3
Operating Temperature:
150°C (TJ)
Package / Case:
35-SSIP, 25 Leads
REACH Status:
REACH Unaffected
Applications:
AC Motors, DC Motors, General Purpose
Interface:
Logic
Package:
Tube
Load Type:
Inductive
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Bootstrap Circuit
Mounting Type:
Through Hole
Series:
-
Voltage - Load:
400V (Max)
Fault Protection:
Current Limiting, UVLO
Voltage - Supply:
12.5V ~ 17.5V
Current - Peak Output:
30A
Rds On (Typ):
-
Output Configuration:
Half Bridge (3)
Technology:
IGBT
Base Product Number:
STK57F
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is ON Semiconductor AC/DC Motor Motor Driver IC 600 V 36A 35-Pin SIP manufactured by onsemi. The manufacturer part number is STK57FU394AG-E. The given dimensions of the product include 62.5 x 26.3 x 6mm. It has 35w inverter power rating . Furthermore, the product is 26.3mm wide. In addition, the height is 6mm. This high-efficiency motor is a ac/dc motor. While its minimum operating supply voltage is 0 v. The package is a sort of sip. It has a typical 20khz switching frequency . The product is available in 3 phase configuration. It has a maximum operating temperature of 125 °c. It has a maximum 36a IGBT collector current . Its accurate length is 62.5mm. It contains 35 pins. It has 400 v maximum operating supply voltage. The product is available in surface mount configuration. The product stk, is a highly preferred choice for users. Whereas features a 600 v of collector emitter voltage (max). The product requires a maximum 450 v supply voltage . Whereas, the minimum operating temperature of the product is -40 °c. It boasts half bridge, single ended output configuration. Featuring ±15a of maximum output current. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It carries 15a output or channel current. 35-sip/sip2a-3 is the supplier device package value. The product has 150°c (tj) operating temperature range. Moreover, the product comes in 35-ssip, 25 leads. In addition, it is reach unaffected. The product is widely employed in ac motors, dc motors, general purpose. A bespoke product is logic interface. It is shipped in tube package . Load Type Specs- inductive. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include bootstrap circuit. The product is available in through hole configuration. The given load voltage is 400v (max). Fault protection features include current limiting, uvlo. It has optimum voltage supply of 12.5v ~ 17.5v. It carries 30a peak current output. It boasts half bridge (3) output configuration. This product use igbt technology. Moreover, it corresponds to stk57f, a base product number of the product. The product is designated with the ear99 code number.
