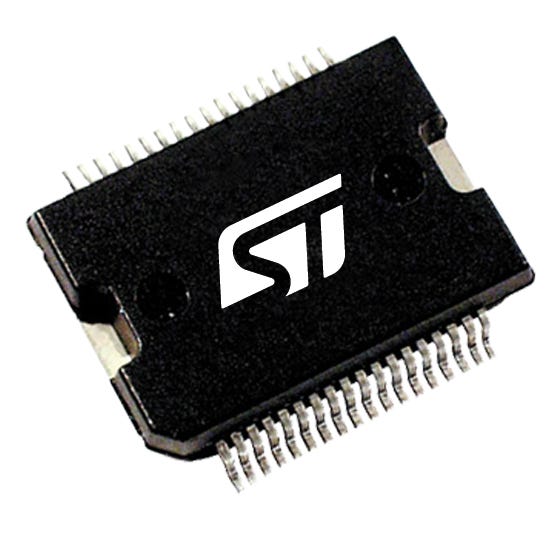

STMicroelectronics L6207PD013TR

L6207PD013TR STMicroelectronics
L6207PD013TR
L6207PD013TR
STMicroelectronics

Product Information

HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
2.8A
Supplier Device Package:
PowerSO-36 Slug Up
Operating Temperature:
-25°C ~ 125°C (TJ)
Package / Case:
36-PowerBSSOP (0.433", 11.00mm Width)
title:
L6207PD013TR
REACH Status:
REACH Unaffected
edacadModel:
L6207PD013TR Models
Applications:
DC Motors, Stepper Motors, Voltage Regulators
edacadModelUrl:
/en/models/715913
Manufacturer:
STMicroelectronics
Load Type:
Inductive
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Interface:
Logic
standardLeadTime:
30 Weeks
Features:
Bootstrap Circuit
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
8V ~ 52V
Fault Protection:
Current Limiting, Over Temperature, UVLO
Packaging:
Tape & Reel (TR)
Voltage - Supply:
8V ~ 52V
Current - Peak Output:
5.6A
Rds On (Typ):
300mOhm
Output Configuration:
Half Bridge (4)
Technology:
DMOS
Base Product Number:
L6207
ECCN:
EAR99
Number of Outputs:
2
Maximum Operating Supply Voltage:
60 V
Maximum Source Current:
5.5mA
Maximum Switching Frequency:
100 kHz
Package Type:
PowerSO36
Pin Count:
36
RoHs Compliant
Checking for live stock

This is manufactured by STMicroelectronics. The manufacturer part number is L6207PD013TR. Additionally, the product is supplied with 2 outputs. It has 60 v maximum operating supply voltage. It has a maximum 5.5ma source current . It has a maximum 100 khz switching frequency. The package is a sort of powerso36. It contains 36 pins. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs3 compliant. It carries 2.8a output or channel current. powerso-36 slug up is the supplier device package value. The product has -25°c ~ 125°c (tj) operating temperature range. Moreover, the product comes in 36-powerbssop (0.433", 11.00mm width). In addition, it is reach unaffected. The product is widely employed in dc motors, stepper motors, voltage regulators. The stmicroelectronics's product offers user-desired applications. Load Type Specs- inductive. Its typical moisture sensitivity level is 3 (168 hours). A bespoke product is logic interface. It has a long 30 weeks standard lead time. The splendid features of the product include bootstrap circuit. The product is available in surface mount configuration. The given load voltage is 8v ~ 52v. Fault protection features include current limiting, over temperature, uvlo. In addition, tape & reel (tr) is the available packaging type of the product. It has optimum voltage supply of 8v ~ 52v. It carries 5.6a peak current output. The typical Rds On of the product is 300mohm. It boasts half bridge (4) output configuration. This product use dmos technology. Moreover, it corresponds to l6207, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devices 27/Feb/2019(PCN Assembly/Origin)
pdf icon
L6207(Datasheets)
pdf icon
Box Label Chg 28/Jul/2016(PCN Packaging)
pdf icon
Datasheet - L6207PD013TR(Technical Reference)
