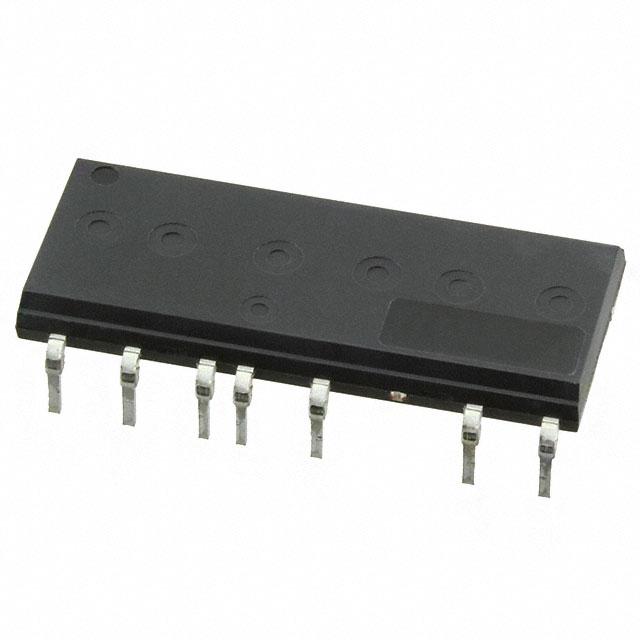

Infineon Technologies IRSM515-055DA

IRSM515-055DA Infineon Technologies
Infineon Technologies

Product Information

HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Output / Channel:
2.4A
Supplier Device Package:
23-DIP
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
23-DIP Module
REACH Status:
REACH Unaffected
Applications:
AC Motors
Interface:
Logic
Package:
Tube
Load Type:
Inductive
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Bootstrap Circuit
Mounting Type:
Through Hole
Series:
µIPM™-DIP
Voltage - Load:
400V (Max)
Fault Protection:
UVLO
Voltage - Supply:
13.5V ~ 16.5V
Current - Peak Output:
15A
Rds On (Typ):
1.3Ohm
Output Configuration:
Half Bridge (3)
Technology:
UMOS
Base Product Number:
IRSM515
ECCN:
EAR99
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is IRSM515-055DA. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. It carries 2.4a output or channel current. 23-dip is the supplier device package value. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 23-dip module. In addition, it is reach unaffected. The product is widely employed in ac motors. A bespoke product is logic interface. It is shipped in tube package . Load Type Specs- inductive. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include bootstrap circuit. The product is available in through hole configuration. The product µipm™-dip, is a highly preferred choice for users. The given load voltage is 400v (max). Fault protection features include uvlo. It has optimum voltage supply of 13.5v ~ 16.5v. It carries 15a peak current output. The typical Rds On of the product is 1.3ohm. It boasts half bridge (3) output configuration. This product use umos technology. Moreover, it corresponds to irsm515, a base product number of the product. The product is designated with the ear99 code number.
