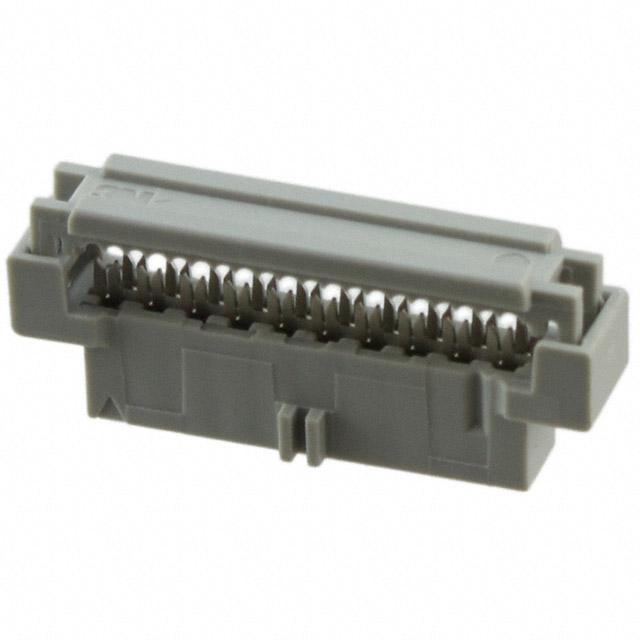

3M 158220-0120

158220-0120 3M
158220-0120
158220-0120
3M

Product Information

Current Rating:
1A
Minimum Operating Temperature:
-55°C
Mounting Type:
Cable Mount
Gender:
Female
Body Orientation:
Right Angle
Pitch:
2mm
Termination Method:
IDC
Housing Material:
Glass Fibre Reinforced PET
Number of Rows:
2
Contact Plating:
Gold over Nickel
Series:
158
Number of Contacts:
20
Maximum Operating Temperature:
+105°C
Contact Material:
Copper
Wire Type:
Ribbon Cable
HTSUS:
8536.69.4051
RoHS Status:
RoHS Compliant
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
20
Wire Gauge:
28 AWG
Number of Rows:
2
Manufacturer:
3M
Cable Termination:
IDC
Connector Type:
Socket
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
-
Features:
Feed Through
Mounting Type:
Free Hanging (In-Line)
Color:
Gray
Series:
158
Packaging:
Bulk
Pitch:
0.079" (2.00mm)
Contact Type:
Female Socket
Row Spacing:
0.079" (2.00mm)
Base Product Number:
158220
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 158220-0120. The product has a current rating of 1a. Whereas, the minimum operating temperature of the product is -55°c. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 2mm. It allows idc termination method. The product also features robust glass fibre reinforced pet housing material. It comes in 2 of rows. The high-quality gold over nickel is used as contact plating material. The product 158, is a highly preferred choice for users. The product contains 20 contacts. It has a maximum operating temperature of +105°c. The product is made from sturdy copper materials. The given wire is a sort of ribbon cable wire. It is assigned with possible HTSUS value of 8536.69.4051. The product is rohs compliant. It has 30.0µin (0.76µm) of contact finishing thickness. The product carries possible position value of 20. Moreover, the product has a wire gauge of 28 awg. The 3m's product offers user-desired applications. It features idc cable terminals. socket Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is not applicable. The splendid features of the product include feed through. The product is available in free hanging (in-line) configuration. It has a classic gray colour. In addition, bulk is the available packaging type of the product. Moreover, the product is 0.079" (2.00mm). It has typical contact type of female socket. The space between it rows includes 0.079" (2.00mm). Moreover, it corresponds to 158220, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Ribbon Cable Socket 158 Series Data Sheet(Technical Reference)
pdf icon
Multiple Devices 12/Dec/2019(PCN Obsolescence/ EOL)
pdf icon
158 Series Drawing(Product Drawings)
