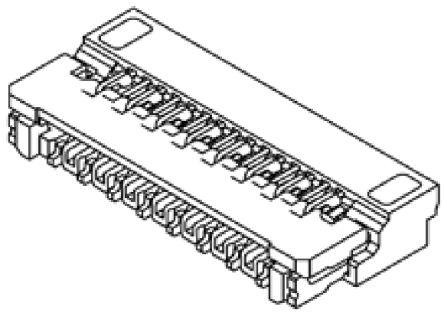

0.3 FPC E/O Hsg Assy 21Ckt EmbsTp Pkg

503566-2100-TR750 0.3 FPC E/O Hsg Assy 21Ckt EmbsTp Pkg
Molex

Product Information

Number of Contacts:
21
Current Rating:
200mA
Termination Type:
Bottom
Mounting Type:
Surface Mount
Voltage Rating:
50 V
Body Orientation:
Right Angle
Termination Method:
SMT
Contact Position:
Bottom
Housing Material:
PET
Number of Rows:
1
Contact Plating:
Gold over Nickel
Pitch:
0.3mm
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-40°C
Series Number:
503566
RoHs Compliant
Checking for live stock

This is 0.3 FPC E/O Hsg Assy 21Ckt EmbsTp Pkg manufactured by Molex. The manufacturer part number is 503566-2100-TR750. The product contains 21 contacts. The product has a current rating of 200ma. The product is designed with a bottom termination. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v voltage rating. It has right angle body orientation. It allows smt termination method. It has a/an bottom position contact . The product also features robust pet housing material. It comes in 1 of rows. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 0.3mm. The product is made from sturdy phosphor bronze materials. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. It carries [Serial Number] serial number.
