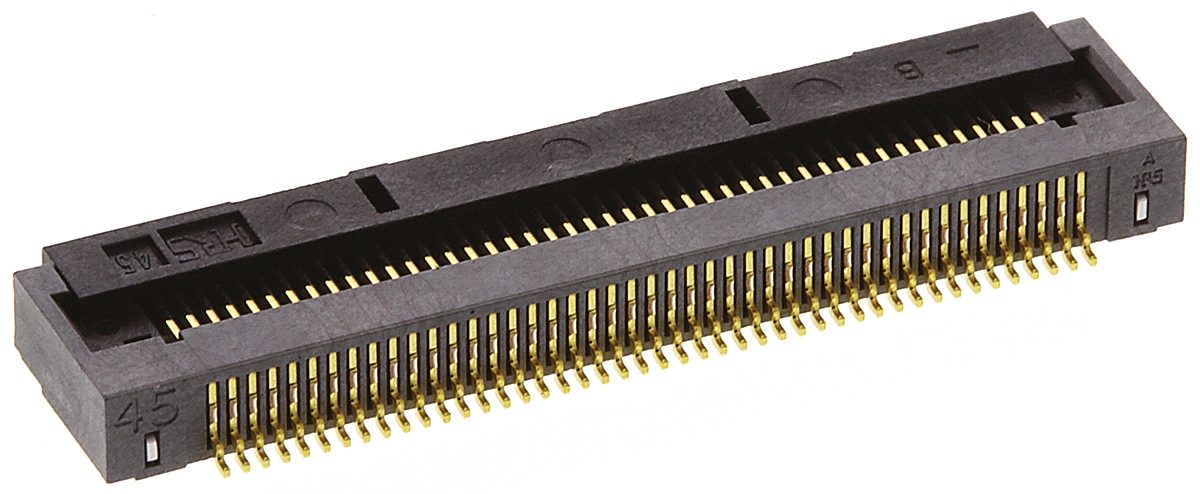

Hirose FH28 0.5mm Pitch 45 Way Right Angle SMT Female FPC Connector, ZIF Bottom Contact

Enrgtech Part No: ET16785934
|
Manufacturer Part No:
FH28-45S-0.5SH(05)
|
Manufacturer: Hirose

FH28-45S-0-5SH-05- Hirose FH28 0.5mm Pitch 45 Way Right Angle SMT Female FPC Connector, ZIF Bottom Contact

Product Information

Current Rating:

500mA

Termination Type:

ZIF Bottom Contact

Mounting Type:

Surface Mount

Voltage Rating:

50 V ac

Gender:

Female

Body Orientation:

Right Angle

Pitch:

0.5mm

Locking Mechanism:

Yes

Termination Method:

Solder

Housing Material:

Liquid Crystal Polymer

Number of Rows:

Contact Plating:

Gold

Checking for live stock

This is FH28 0.5mm Pitch 45 Way Right Angle SMT Female FPC Connector ZIF Bottom Contact manufactured by Hirose. The manufacturer part number is FH28-45S-0.5SH(05). The product has a current rating of 500ma. The product is designed with a zif bottom contact termination. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v ac voltage rating. In addition, female is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 0.5mm. It has a locking mechanism included yes . It allows solder termination method. The product also features robust liquid crystal polymer housing material. It comes in 1 of rows. The high-quality gold is used as contact plating material. The product fh28, is a highly preferred choice for users. The product contains 45 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy phosphor bronze materials.

FH28 0.5mm R/A FPC/FFC connector - drawing(Technical Reference)

FH28 0.5mm FPC/FFC Connectors Specification Sheet(Technical Reference)

FH28 Series 0.5mm FPC/FFC Connectors(Technical Reference)
