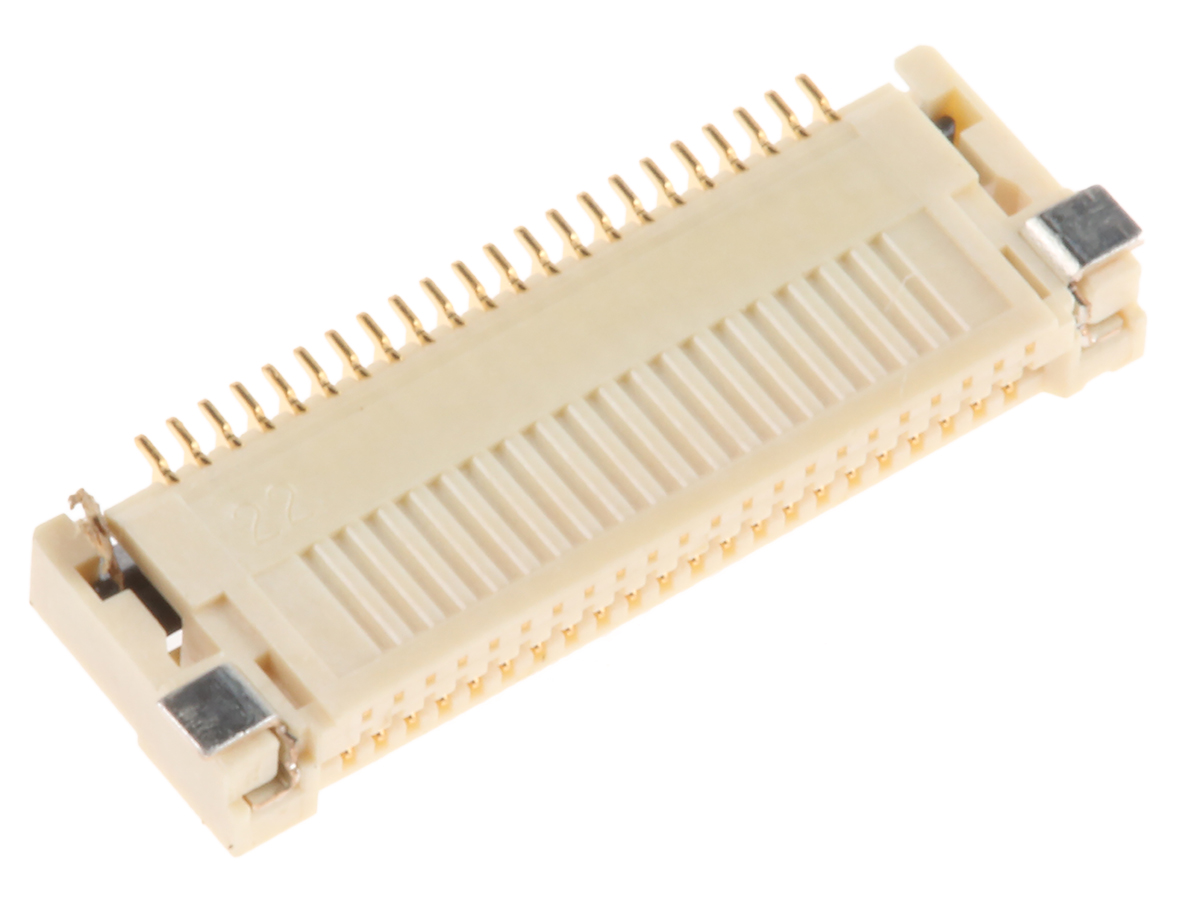

Omron XF2M Series 0.5mm Pitch 22 Way Right Angle SMT Female FPC Connector Locking Mechanism, Top and Bottom Contact

XF2M-2215-1A Omron XF2M Series 0.5mm Pitch 22 Way Right Angle SMT Female FPC Connector Locking Mechanism, Top and Bottom Contact
XF2M-2215-1A
Omron

Product Information

Current Rating:
500mA
Termination Type:
Top and Bottom Contact
Mounting Type:
Surface Mount
Voltage Rating:
50 V ac/dc
Gender:
Female
Body Orientation:
Right Angle
Pitch:
0.5mm
Locking Mechanism:
Yes
Termination Method:
Solder
Housing Material:
Liquid Crystal Polymer
Number of Rows:
1
Contact Plating:
Gold
Series:
XF2M
Number of Contacts:
22
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-30°C
Contact Material:
Beryllium Copper, Nickel
RoHs Compliant
Checking for live stock

This is XF2M Series 0.5mm Pitch 22 Way Right Angle SMT Female FPC Connector Locking Mechanism Top and Bottom Contact manufactured by Omron. The manufacturer part number is XF2M-2215-1A. The product has a current rating of 500ma. The product is designed with a top and bottom contact termination. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v ac/dc voltage rating. In addition, female is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 0.5mm. It has a locking mechanism included yes . It allows solder termination method. The product also features robust liquid crystal polymer housing material. It comes in 1 of rows. The high-quality gold is used as contact plating material. The product xf2m, is a highly preferred choice for users. The product contains 22 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -30°c. The product is made from sturdy beryllium copper, nickel materials.
