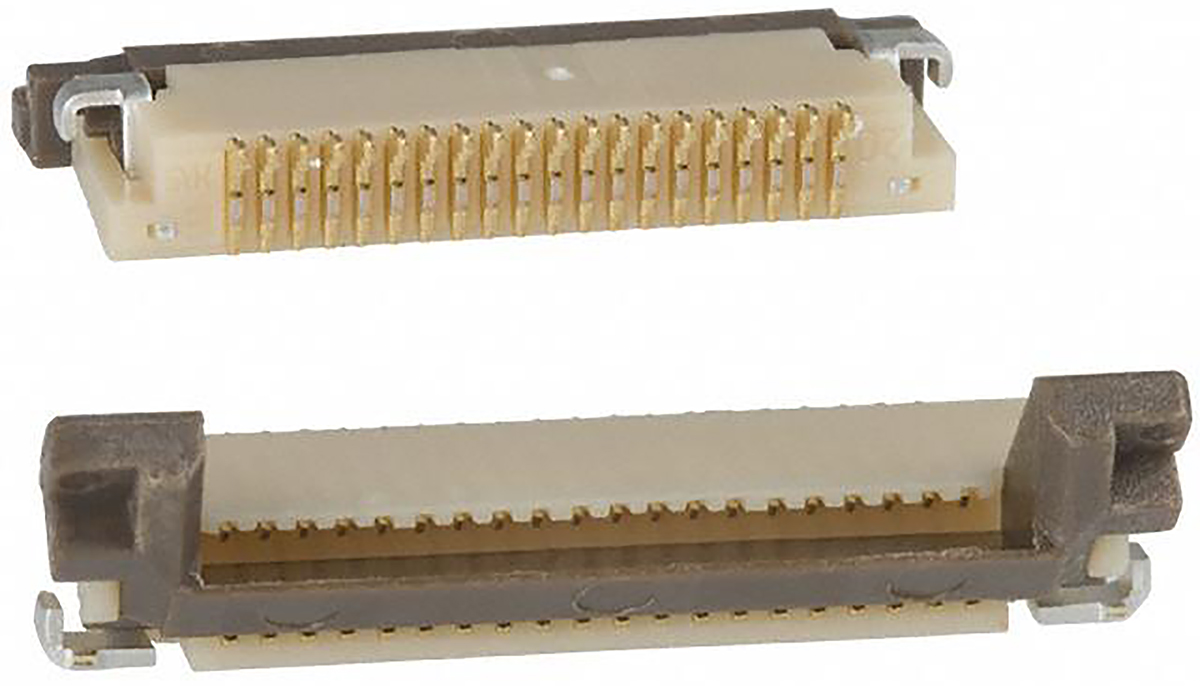

Hirose FH12 0.5mm Pitch 20 Way Right Angle SMT Female FPC Connector, ZIF Top Contact

FH12A-20S-0-5SH-55- Hirose FH12 0.5mm Pitch 20 Way Right Angle SMT Female FPC Connector, ZIF Top Contact
Hirose

Product Information

Current Rating:
500mA
Termination Type:
ZIF Top Contact
Mounting Type:
Surface Mount
Voltage Rating:
50 V ac
Gender:
Female
Body Orientation:
Right Angle
Pitch:
0.5mm
Termination Method:
Solder
Housing Material:
PPS·Polyamide
Number of Rows:
1
Contact Plating:
Gold
Series:
FH12
Number of Contacts:
20
Maximum Operating Temperature:
70°C
Minimum Operating Temperature:
-40°C
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is FH12 0.5mm Pitch 20 Way Right Angle SMT Female FPC Connector ZIF Top Contact manufactured by Hirose. The manufacturer part number is FH12A-20S-0.5SH(55). The product has a current rating of 500ma. The product is designed with a zif top contact termination. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v ac voltage rating. In addition, female is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 0.5mm. It allows solder termination method. The product also features robust pps·polyamide housing material. It comes in 1 of rows. The high-quality gold is used as contact plating material. The product fh12, is a highly preferred choice for users. The product contains 20 contacts. It has a maximum operating temperature of 70°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy phosphor bronze materials.

pdf icon
Datasheet(Technical Reference)
pdf icon
FH12 Series Datasheet(Technical Reference)
pdf icon
FH12A Series 0.5mm and 1mm Pitch Connectors For FPC/FFC Catalogue(Technical Reference)
pdf icon
FH12 0.5mm FPC/FFC connector, 20P - drawing(Technical Reference)
