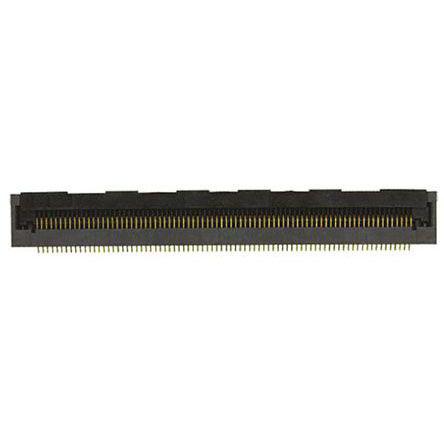

Hirose FH28 Series 0.5mm Pitch 80 Way Right Angle SMT Female FPC Connector Locking Mechanism, ZIF Bottom Contact

FH28H-80S-0-5SH-05- Hirose FH28 Series 0.5mm Pitch 80 Way Right Angle SMT Female FPC Connector Locking Mechanism, ZIF Bottom Contact
Hirose

Product Information

Current Rating:
500mA
Termination Type:
ZIF Bottom Contact
Mounting Type:
Surface Mount
Voltage Rating:
50 V ac
Gender:
Female
Body Orientation:
Right Angle
Pitch:
0.5mm
Locking Mechanism:
Yes
Termination Method:
Solder
Housing Material:
Liquid Crystal Polymer
Number of Rows:
1
Contact Plating:
Gold
Series:
FH28
Number of Contacts:
80
Maximum Operating Temperature:
+105°C
Minimum Operating Temperature:
-40°C
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is FH28 Series 0.5mm Pitch 80 Way Right Angle SMT Female FPC Connector Locking Mechanism ZIF Bottom Contact manufactured by Hirose. The manufacturer part number is FH28H-80S-0.5SH(05). The product has a current rating of 500ma. The product is designed with a zif bottom contact termination. The product is available in surface mount configuration. Moreover, the product has a nominal 50 v ac voltage rating. In addition, female is the available "Gender" of the product. It has right angle body orientation. Moreover, the product is 0.5mm. It has a locking mechanism included yes . It allows solder termination method. The product also features robust liquid crystal polymer housing material. It comes in 1 of rows. The high-quality gold is used as contact plating material. The product fh28, is a highly preferred choice for users. The product contains 80 contacts. It has a maximum operating temperature of +105°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy phosphor bronze materials.

pdf icon
FH28H 0.5mm R/A FPC/FFC connector - drawing(Technical Reference)
pdf icon
FH28H 0.5mm FPC/FFC Connectors Specification Sheet(Technical Reference)
pdf icon
FH28 Series 0.5mm FPC/FFC Connectors(Technical Reference)
