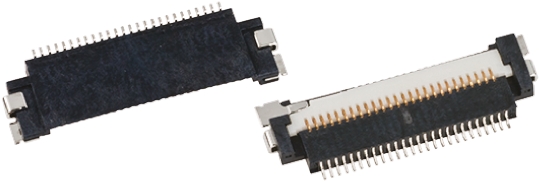

JAE FA5 0.5mm Pitch 26 Way Right Angle SMT FPC Connector, ZIF Bottom Contact

  • Enrgtech Part No: ET13974985
  • |
  • Manufacturer Part No:

    FA5S026HP1

  • |
  • Manufacturer: JAE
FA5S026HP1 JAE FA5 0.5mm Pitch 26 Way Right Angle SMT FPC Connector, ZIF Bottom Contact
JAE

Product Information

Current Rating:
800mA
Termination Type:
ZIF Bottom Contact
Mounting Type:
Surface Mount
Voltage Rating:
250 V ac
Series:
FA5
Body Orientation:
Right Angle
Termination Method:
Solder
Locking Mechanism:
Yes
Housing Material:
Liquid Crystal Polymer
Number of Rows:
1
Contact Plating:
Tin
Pitch:
0.5mm
Number of Contacts:
26
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is FA5 0.5mm Pitch 26 Way Right Angle SMT FPC Connector ZIF Bottom Contact manufactured by JAE. The manufacturer part number is FA5S026HP1. The product has a current rating of 800ma. The product is designed with a zif bottom contact termination. The product is available in surface mount configuration. Moreover, the product has a nominal 250 v ac voltage rating. The product fa5, is a highly preferred choice for users. It has right angle body orientation. It allows solder termination method. It has a locking mechanism included yes . The product also features robust liquid crystal polymer housing material. It comes in 1 of rows. The high-quality tin is used as contact plating material. Moreover, the product is 0.5mm. The product contains 26 contacts. It has a maximum operating temperature of +85°c. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy copper alloy materials.

pdf icon
FA5 Series Drawing(Technical Reference)
