Current Rating:
500mA
Termination Type:
ZIF Bottom Contact
Mounting Type:
Surface Mount
Voltage Rating:
50 V ac/dc
Gender:
Male
Body Orientation:
Right Angle
Pitch:
0.5mm
Termination Method:
Solder
Housing Material:
Glass Fibre Reinforced Thermoplastic
Number of Rows:
1
Contact Plating:
Gold
Series:
OPU
Number of Contacts:
40
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-55°C
Contact Material:
Phosphor Bronze
Manufacturer Standard Lead Time:
9 Weeks
Detailed Description:

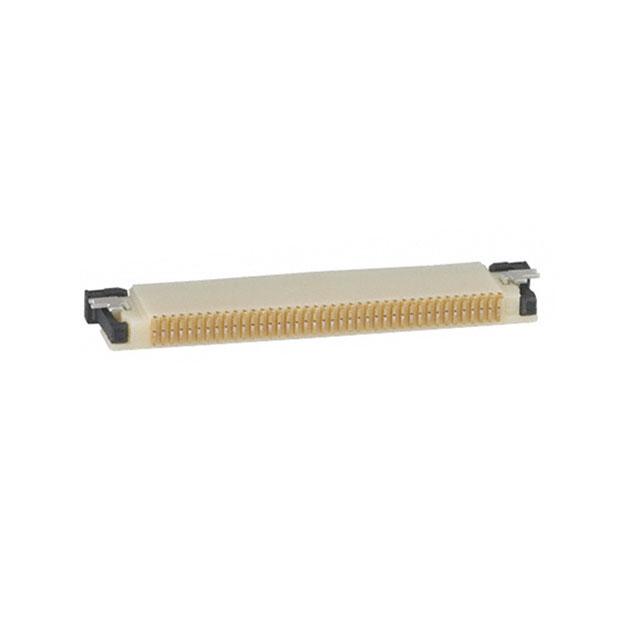

40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating:
0.5A
Housing Material:
Polyamide (PA9T), Nylon 9T, Glass Filled
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.079" (2.00mm)
Actuator Color:
Black
Contact Finish Thickness:
2.00µin (0.051µm)
Number of Positions:
40
Locking Feature:
Slide Lock
Flat Flex Type:
FPC
Housing Color:
Beige
Standard Package:
1
Manufacturer:
Amphenol FCI
Voltage Rating:
50V
Material Flammability Rating:
UL94 V-0
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
OPU
FFC, FCB Thickness:
0.30mm
Actuator Material:
Thermoplastic, Glass Filled
Packaging:
Cut Tape (CT)
Pitch:
0.020" (0.50mm)
Other Names:
609-1195-1
Cable End Type:
Tapered
Contact Material:
Phosphor Bronze
