Current Rating:
400mA
Termination Type:
ZIF Bottom Contact
Mounting Type:
Surface Mount
Voltage Rating:
50 V ac/dc
Gender:
Male
Body Orientation:
Right Angle
Pitch:
0.5mm
Locking Mechanism:
Yes
Termination Method:
Solder
Housing Material:
Thermoplastic
Number of Rows:
1
Contact Plating:
Gold
Series:
SFVL
Number of Contacts:
4
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-55°C
Contact Material:
Copper Alloy
Manufacturer Standard Lead Time:
8 Weeks
Detailed Description:

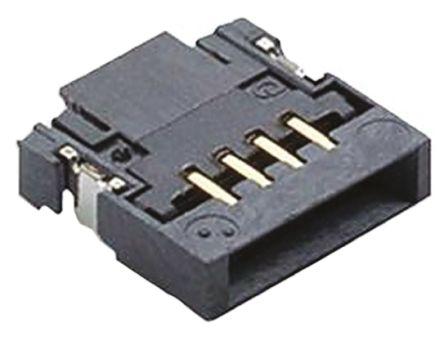

4 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Current Rating:
0.4A
Housing Material:
Thermoplastic, Glass Filled, Halogen Free
Operating Temperature:
-55°C ~ 85°C
Height Above Board:
0.035" (0.88mm)
Actuator Color:
Black
Number of Positions:
4
Locking Feature:
Flip Lock, Backlock
Flat Flex Type:
FPC
Housing Color:
Black
Standard Package:
1
Manufacturer:
Amphenol FCI
Voltage Rating:
50V
Material Flammability Rating:
UL94 V-0
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
10
Connector/Contact Type:
Contacts, Bottom
Features:
Solder Retention, Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
SFVL
FFC, FCB Thickness:
0.20mm
Actuator Material:
Thermoplastic, Glass Filled
Packaging:
Cut Tape (CT)
Pitch:
0.020" (0.50mm)
Other Names:
609-5382-1
Cable End Type:
Notched
Contact Material:
Copper Alloy
