Current Rating:
1A
Termination Type:
ZIF Top Contact
Mounting Type:
Surface Mount
Voltage Rating:
100 V ac/dc
Minimum Operating Temperature:
-55°C
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Solder
Housing Material:
PSU
Number of Rows:
1
Contact Plating:
Tin
Pitch:
1mm
Number of Contacts:
16
Maximum Operating Temperature:
+105°C
CAD Drawing:
3D CAD Model
Contact Material:
Phosphor Bronze
Manufacturer Standard Lead Time:
11 Weeks
Detailed Description:

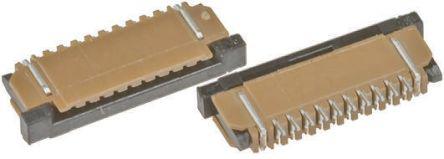

16 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Current Rating:
1A
Housing Material:
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature:
-55°C ~ 105°C
Height Above Board:
0.106" (2.70mm)
Actuator Color:
Black
Number of Positions:
16
Locking Feature:
Slide Lock
Flat Flex Type:
FFC, FPC
Housing Color:
Brown
Standard Package:
500
Manufacturer:
Amphenol FCI
Voltage Rating:
100V
Material Flammability Rating:
UL94 V-0
Contact Finish:
Tin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Mating Cycles:
20
Connector/Contact Type:
Contacts, Top
Features:
Zero Insertion Force (ZIF)
Mounting Type:
Surface Mount, Right Angle
Series:
SFW-R
FFC, FCB Thickness:
0.30mm, 0.33mm
Packaging:
Tape & Reel (TR)
Pitch:
0.039" (1.00mm)
Actuator Material:
Polyphenylene Sulfide (PPS), Glass Filled
Cable End Type:
Straight, Tapered
Contact Material:
Phosphor Bronze
