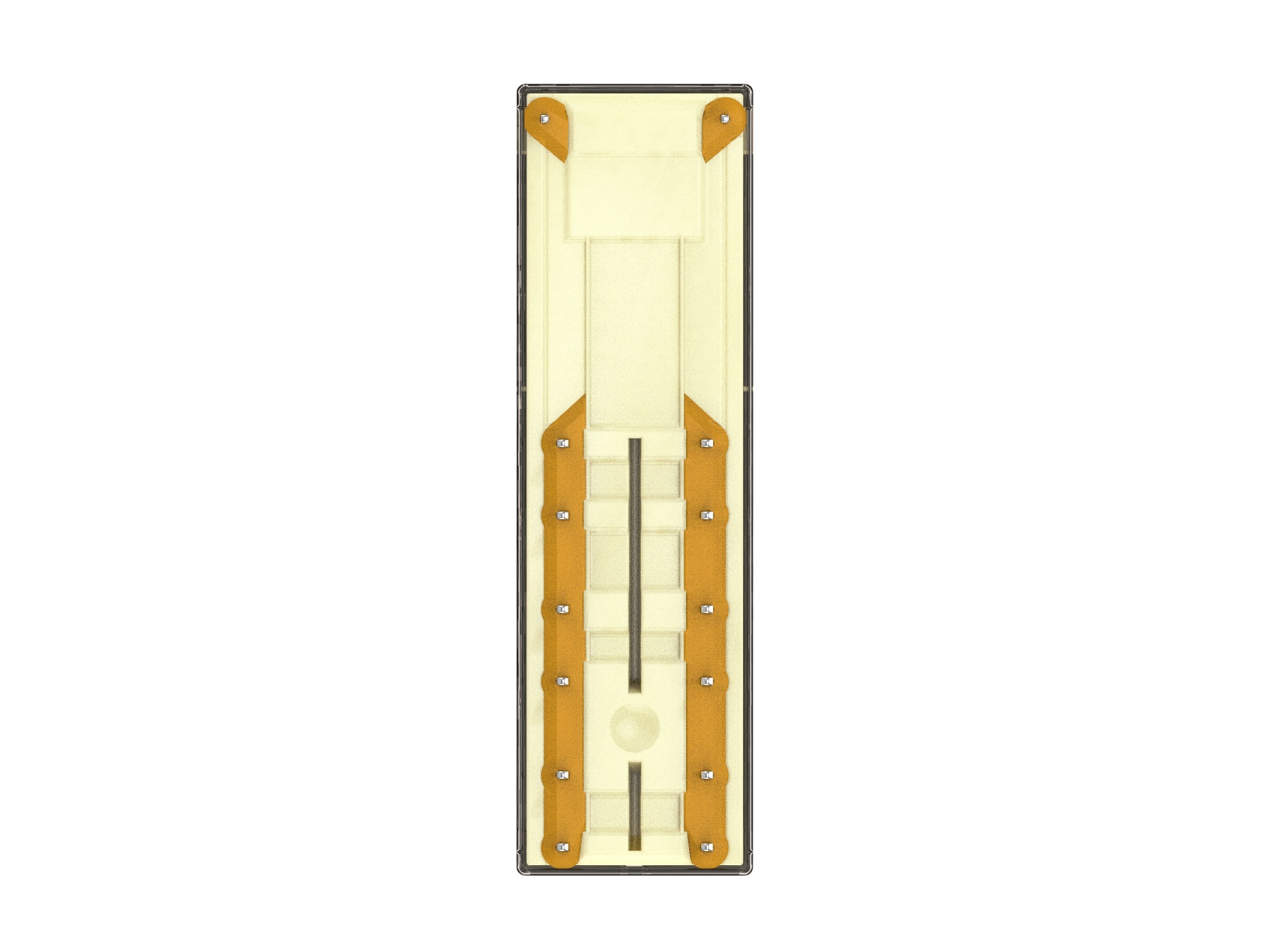

TE Connectivity PCB Mount Force Guided Relay, 12V dc Coil Voltage, 6 Pole, 3PDT

V23050A1012A533--1415015-1 TE Connectivity PCB Mount Force Guided Relay, 12V dc Coil Voltage, 6 Pole, 3PDT
V23050A1012A533 1415015-1
V23050A1012A533 1415015-1
ET28274549
ET28274549
Force Guided Relays
TE Connectivity

Product Information

Maximum Operating Temperature:
+70°C
Mounting Type:
PCB Mount
Coil Power:
1.2W
Series:
SCHRACK SR6
Switching Current:
8A
Coil Voltage:
12V dc
Length:
55mm
Height:
16.5mm
Depth:
16.5mm
Maximum Switching Voltage AC:
400V ac
Minimum Operating Temperature:
-25°C
Approvals:
CCC 2020970303000302, TUV 968/EL 350, UL E214025, VDE Cert. No. 128935
Contact Configuration:
3PDT
Contact Material:
Silver Alloy
Number of Poles:
6
Terminal Type:
Through Hole
Coil Resistance:
480 Ω
RoHs Compliant
Checking for live stock

This is PCB Mount Force Guided Relay 12V dc Coil Voltage 6 Pole 3PDT manufactured by TE Connectivity. The manufacturer part number is V23050A1012A533 1415015-1. It has a maximum operating temperature of +70°c. The product is available in pcb mount configuration. Robust coil power of 1.2w. The product schrack sr6, is a highly preferred choice for users. It is integrated with 8a switching current. The coil voltage of the product is 12v dc. Its accurate length is 55mm. In addition, the height is 16.5mm. The product comes in 16.5mm depth. It has a maximum AC switching voltage of 400v ac. Whereas, the minimum operating temperature of the product is -25°c. The product complies with ccc 2020970303000302, tuv 968/el 350, ul e214025, vde cert. no. 128935. The contact is equipped with 3pdt configuration. The product is made from sturdy silver alloy materials. It has equipped with 6 poles. The terminal is a through hole type. It holds up to 480 ω coil resistance.

pdf icon
Datasheet - V23050A1012A533 1415015-1(Technical Reference)
