Set/Reset:
Yes
Dimensions:
2.1 x 2.4 x 0.8mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
7.5ns
Minimum Operating Supply Voltage:
1.65 V
Logic Function:
D Type
Propagation Delay Test Condition:
50pF
Output Type:
3 State
Height:
0.8mm
Width:
2.4mm
Length:
2.1mm
Package Type:
US
Logic Family:
TinyLogic UHS
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Triggering Type:
Positive Edge
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Number of Elements per Chip:
1
HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)

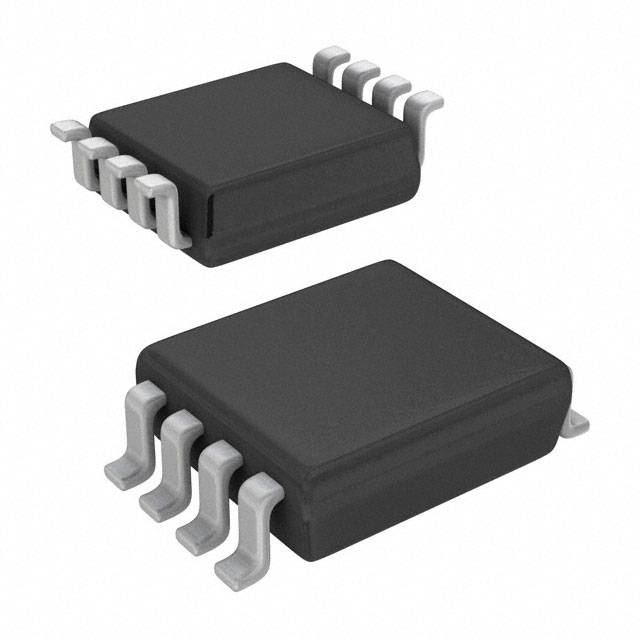

Package / Case:
8-VFSOP (0.091", 2.30mm Width)
Type:
D-Type
Input Capacitance:
3 pF
Function:
Set(Preset) and Reset
title:
NC7SZ74K8X
Number of Bits per Element:
1
REACH Status:
REACH Unaffected
Output Type:
Complementary
edacadModel:
NC7SZ74K8X Models
Max Propagation Delay @ V, Max CL:
5ns @ 5V, 50pF
edacadModelUrl:
/en/models/965434
Manufacturer:
onsemi
Current - Quiescent (Iq):
1 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Trigger Type:
Positive Edge
Clock Frequency:
200 MHz
Mounting Type:
Surface Mount
Series:
7SZ
Supplier Device Package:
US8
Packaging:
Tape & Reel (TR)
Voltage - Supply:
1.65V ~ 5.5V
Current - Output High, Low:
32mA, 32mA
Number of Elements:
1
Base Product Number:
7SZ74
ECCN:
EAR99
